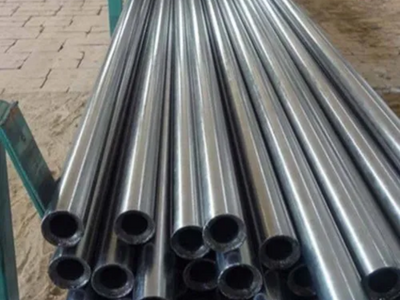

Incoloy 800H Pipes & Tubes
Incoloy 800H Tubes Exporter, ASME SB 515 Incoloy Alloy 800 Welded Tube, Incoloy Alloy 825 Seamless Tubing, ASTM B407 Alloy 800HT Seamless Pipes Supplier, UNS N08800 Welded Pipes, Incoloy 825 Pipes Manufacturer in India.
Incoloy UNS N08825 ERW Tubing Trader, DIN 1.4876 ERW Pipes, UNS N08800 Seamless Tubes Stockists, Incoloy UNS N08811 Welded Pipes Dealer, DIN 2.4858 Tubing, Incoloy Alloy 800 Tubes Supplier in India.
DETAILED INFORMATION
A World-Class Manufacturer, Supplier, and Exporter of Inconel 800, 800H, and 800HT Pipes and Tubes, Mehtametals.com is one of the leading manufacturers and suppliers of Inconel 800, 800H, and 800HT Pipes and Tubes manufactured from high-quality standard raw materials as per the national and international standards. It has been found that Alloy 800 Pipes and Tubes (UNS N08800 Pipes and Tubes), Alloy 800H Pipes and Tubes (UNS N08810 Pipes and Tubes), and Alloy 800HT Pipes and Tubes (UNS N08811 Pipes and Tubes) have been used for a wide variety of applications, from petrochemical processing reformer tubing to bellows and flare tips for refineries.
There are several types of high-performance alloys such as Incoloy, also called high-performance alloys, which provide excellent corrosion resistance and oxidation resistance, as well as mechanical strength at elevated temperatures. Depending on the alloy the customer requires, Incoloy 800/800HT/825 Pipes & Tubes can be supplied in welded, seamless, or welded and cold forms. There are many applications for the Superalloy super alloy, including industrial furnaces, nuclear engineering pressure vessels, and power plant heaters. The use of these pumps is also widespread in fields such as chemical processing, pulp and paper, and heat exchangers.
A common application of Incoloy 800/800HT/825 Pipes & Tubes in nuclear power plants and paper pulp plants is in reforming furnaces for steam methane and in extruded tubing. These tubes are manufactured both in seamless as well as in welded forms. They are extremely corrosion resistant, even when they are placed in an acidic environment, as these tubes are manufactured in both seamless and welded form. Many industries throughout the world use it for a wide range of purposes, especially for those that deal with temperatures around 600 degrees Celsius, as it can be applied to a wide range of applications.
There are many industries and pipe systems that use pipes and tubes. They are used when a fluid has to be passed from one point to another within the pipe. In contrast, one can easily design pipes based on their needs, such as invariant shapes, sizes, thicknesses, designations, specifications, standards, dimensions, forms, types, alloys, grades, ranges, and so forth. Inconel 800HT Pipes & Tubes, on the other hand, are often the most sought-after products due to their amazing workability in high-to-low and low-to-high temperature conditions, as well as being highly resistant to corrosion and corrosion damage.
There are many types of tubes and pipes that are commonly used in the construction industry, including as-welded pipes, round pipes, custom pipes, seamless pipes, decorative pipes, polished tubes, heat exchanger tubes, fabricated pipes, and LSAW pipes, among others. Despite the fact that Inconel 800HT is an extremely oxidation-resistant alloy, the pipes and tubes in this alloy are very attractive products. These pipes and tubes also possess a high degree of corrosion resistance, pitting resistance, creative resistance, resistance to acids such as nitric acid and sulfuric acid, stress resistance, and chloride corrosion resistance in an acidic environment, among other resistance properties.
Furthermore, Inconel 800HT pipes & tubes offer enhanced resistance to stress ruptures and creep. Further, it is capable of exhibiting greater strength, greater toughness, more mechanical strength, greater yielding strength, and greater tensile strength; it is easy to install, easy to weld, easy to fabricate, as well as high reliability and durability that doesn't require any maintenance for an extended period of time without any issues. There are many industries in which this application is commonly used, including the petrochemical industry, the chemical industry, the pulp and paper industry, and the oil and gas industry.
In order to ensure that the pipes are of a high standard before they are dispatched to the customers, industry professionals conduct material tests to determine their quality. It is important to note that the tests performed are the mechanical test, the positive material identification test, the intergranular corrosion test, and the hardness test. A number of other tests are also performed by the professionals on the pipes, such as a pitting resistance test, a flaring test, a flattening test, and a chemical analysis.
As well as being abrasion resistant, corrosion resistant, pitting resistant, acidic environment resistant, crevice corrosion resistant, stress crack corrosion resistant, and extremely strong, the Incoloy Alloy 800 / 800H / 800HT Pipes also offer excellent strength and durability. In addition to the pipes, the industry provides several documents accompanying the pipes, so that the buyers can be assured about the quality and check the description of the material to be used and how to use the pipe correctly.
CITIES WE DELIVER
Adoni, Amaravati, Anantapur, Chandragiri, Chittoor, Dowlaiswaram ,Eluru, Guntur, Kadapa, Kakinada, Kurnool, Machilipatnam, Nagarjunakoṇḍa, Rajahmundry, Srikakulam, Tirupati, Vijayawada, Visakhapatnam, Vizianagaram, Yemmiganur, Itanagar, Dhuburi, Dibrugarh, Dispur, Guwahati, Jorhat, Nagaon, Sivasagar, Silchar, Tezpur, Tinsukia, Ara, Barauni, Begusarai, Bettiah, Bhagalpur, Bihar, Sharif, Bodh Gaya, Buxar, Chapra, Darbhanga, Dehri, Dinapur Nizamat, Gaya, Hajipur, Jamalpur, Katihar, Madhubani, Motihari, Munger, Muzaffarpur, Patna, Purnia, Pusa, Saharsa, Samastipur, Sasaram, Sitamarhi, Siwan, Chandigarh, Ambikapur, Bhilai, Bilaspur, Dhamtari, Durg, Jagdalpur, Raipur, Rajnandgaon, Daman, Diu, Silvassa, Delhi, New Delhi, Madgaon, Panaji, Ahmadabad, Amreli, Bharuch, Bhavnagar, Bhuj, Dwarka, Gandhinagar, Godhra, Jamnagar, Junagadh, Kandla, Khambhat, Kheda, Mahesana, Morbi, Nadiad, Navsari, Okha, Palanpur, Patan, Porbandar, Rajkot, Surat, Surendranagar, Valsad, Veraval, Ambala, Bhiwani, Chandigarh, Faridabad, Firozpur Jhirka, Gurugram, Hansi, Hisar, Jind, Kaithal, Karnal, Kurukshetra, Panipat, Pehowa, Rewari, Rohtak, Sirsa, Sonipat, Bilaspur, Chamba, Dalhousie, Dharmshala, Hamirpur, Kangra, Kullu, Mandi, Nahan, Shimla, Una, Anantnag, Baramula, Doda, Gulmarg, Jammu, Kathua, Punch, Rajouri, Srinagar, Udhampur, Bokaro, Chaibasa, Deoghar, Dhanbad, Dumka, Giridih, Hazaribag, Jamshedpur, Jharia, Rajmahal, Ranchi, Saraikela, Badami, Ballari, Bengaluru, Belagavi, Bhadravati, Bidar, Chikkamagaluru, Chitradurga, Davangere, Halebid, Hassan, Hubballi-Dharwad, Kalaburagi, Kolar, Madikeri, Mandya, Mangaluru, Mysuru, Raichur, Shivamogga, Shravanabelagola, Shrirangapattana, Tumakuru, Vijayapura, Alappuzha, Vatakara, Idukki, Kannur, Kochi, Kollam, Kottayam, Kozhikode, Mattancheri, Palakkad, Thalassery, Thiruvananthapuram, Thrissur, Kargil, Leh, Balaghat, Barwani, Betul, Bharhut, Bhind, Bhojpur, Bhopal, Burhanpur, Chhatarpur, Chhindwara, Damoh, Datia, Dewas, Dhar, Dr. Ambedkar Nagar (Mhow), Guna, Gwalior, Hoshangabad, Indore, Itarsi, Jabalpur, Jhabua, Khajuraho, Khandwa, Khargone, Maheshwar, Mandla, Mandsaur, Morena, Murwara, Narsimhapur, Narsinghgarh, Narwar, Neemuch, Nowgong, Orchha, Panna, Raisen, Rajgarh, Ratlam, Rewa, Sagar, Sarangpur, Satna, Sehore, Seoni, Shahdol, Shajapur, Sheopur, Shivpuri, Ujjain, Vidisha, Ahmadnagar, Akola, Amravati, Aurangabad, Bhandara, Bhusawal, Bid, Buldhana, Chandrapur, Daulatabad, Dhule, Jalgaon, Kalyan, Karli, Kolhapur, Mahabaleshwar, Malegaon, Matheran, Mumbai, Nagpur, Nanded, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Ratnagiri, Sangli, Satara, Sevagram, Solapur, Thane, Ulhasnagar,n Vasai-Virar, Wardha, Yavatmal, Imphal, Cherrapunji, Shillong, Aizawl, Lunglei, Kohima, Mon, Phek, Wokha, Zunheboto, Balangir, Baleshwar, Baripada, Bhubaneshwar, Brahmapur, Cuttack, Dhenkanal, Kendujhar, Konark, Koraput, Paradip, Phulabani, Puri, Sambalpur, Udayagiri, Karaikal, Mahe, Puducherry, Yanam, Amritsar, Batala, Chandigarh, Faridkot, Firozpur, Gurdaspur, Hoshiarpur, Jalandhar, Kapurthala, Ludhiana, Nabha, Patiala, Rupnagar, Sangrur, Abu, Ajmer, Alwar, Amer, Barmer, Beawar, Bharatpur, Bhilwara, Bikaner, Bundi, Chittaurgarh, Churu, Dhaulpur, Dungarpur, Ganganagar, Hanumangarh, Jaipur, Jaisalmer, Jalor, Jhalawar, Jhunjhunu, Jodhpur, Kishangarh, Kota, Merta, Nagaur, Nathdwara, Pali, Phalodi, Pushkar, Sawai Madhopur, Shahpura, Sikar, Sirohi, Tonk, Udaipur, Gangtok, Gyalshing, Lachung, Mangan, Arcot, Chengalpattu, Chennai, Chidambaram, Coimbatore, Cuddalore, Dharmapuri, Dindigul, Erode, Kanchipuram, Kanniyakumari, Kodaikanal, Kumbakonam, Madurai, Mamallapuram, Nagappattinam, Nagercoil, Palayamkottai, Pudukkottai, Rajapalayam, Ramanathapuram, Salem, Thanjavur, Tiruchchirappalli, Tirunelveli, Tiruppur, Thoothukudi, Udhagamandalam, Vellore, Hyderabad, Karimnagar, Khammam, Mahbubnagar, Nizamabad, Sangareddi, Warangal, Agartala, Agra, Aligarh, Amroha, Ayodhya, Azamgarh, Bahraich, Ballia, Banda, Bara Banki, Bareilly, Basti, Bijnor, Bithur, Budaun, Bulandshahr, Deoria, Etah, Etawah, Faizabad, Farrukhabad-cum-Fatehgarh, Fatehpur, Fatehpur Sikri, Ghaziabad, Ghazipur, Gonda, Gorakhpur, Hamirpur, Hardoi, Hathras, Jalaun, Jaunpur, Jhansi, Kannauj, Kanpur, Lakhimpur, Lalitpur, Lucknow, Mainpuri, Mathura, Meerut, Mirzapur-Vindhyachal, Moradabad, Muzaffarnagar, Partapgarh, Pilibhit, Prayagraj, Rae Bareli, Rampur, Saharanpur, Sambhal, Shahjahanpur, Sitapur, Sultanpur, Tehri, Varanasi, Almora, Dehra Dun, Haridwar, Mussoorie, Nainital, Pithoragarh, Alipore, Alipur Duar, Asansol, Baharampur, Bally, Balurghat, Bankura, Baranagar, Barasat, Barrackpore, Basirhat, Bhatpara, Bishnupur, Budge Budge, Burdwan, Chandernagore, Darjeeling, Diamond Harbour, Dum Dum, Durgapur, Halisahar, Haora, Hugli, Ingraj Bazar, Jalpaiguri, Kalimpong, Kamarhati, Kanchrapara, Kharagpur, Cooch Behar, Kolkata, Krishnanagar, Malda, Midnapore, Murshidabad, Nabadwip, Palashi, Panihati, Purulia, Raiganj, Santipur, Shantiniketan, Shrirampur, Siliguri, Siuri, Tamluk, Titagarh
Specification of Incoloy Alloy 800H Pipes/Tubes
Pipe/Tube Specifications: ASTM B167, B517, B516 / ASME SB167, SB517, SB516
Dimensions: ASTM, ASME
Pipe Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Tube Outside Diameter: 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Range: 1/2” OD up to 5” OD, customs diameters also available
Type: Seamless / ERW / Welded / Capillary Tubes
Form: Round Tube, Square Tube, Rectangular Tube
Length: Single Random, Double Random & Required Length
End: Plain End, Beveled End, Treaded
End Protection: Plastic Caps
Finish: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
External Coating: 3LPE / 3LPP/ FBE/ DFBE/ PP
CHEMICAL COMPOSITION OF INCOLOY 800H PIPE TUBE
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
MECHANICAL PROPERTIES OF INCOLOY 800H PIPE TUBE
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
800H | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
INCOLOY 800 / 800H / 800HT PIPE AND TUBE EQUIVALENT GRADES
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800H | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Physical Properties of Incoloy 800/800HT Pipes and Tubes
Density LBM/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
49.6 at 1652 °F | 10.4 at 32 – 1500°F |
Types Of Incoloy 800H Pipes and Tubes
- Incoloy 800 Precision Tubes Supplier in Tanzania
- Incoloy 800H Seamless Pipes Exporter in Brazil
- Incoloy UNS N08800 Seamless Tubes in Madagascar
- Incoloy 800 Werkstoff Nr. 2.4816 Welded Pipes
- Incoloy 800HT Welded Tubes Exporter in Egypt
- Incoloy 800HT Round Pipes Stockiest in Ghana
- Incoloy 800 ERW Pipes Manufacturer in India
- Incoloy 800H ERW Tubes Stockholder in Africa
- Incoloy 800 Alloy Rectangular Pipes in Libya
- ASME SB 407 Incoloy 800/H/HT Pipes/Tubes
- Incoloy Alloy 800 Rectangular Tubes in Nigeria
- B514 Alloy 800/H/HT Square Pipes Exporter
- Incoloy 800 HT Square Tubes in Ethiopia
- Incoloy 800 Hollow Pipes Supplier in Chile
- Incoloy 800 Hollow Tubes Distributors
- ASTM Incoloy 800/H/HT EFW Pipes in Zambia
- Incoloy Alloy 800 EFW Tubes Dealer in Peru
- ASTM/ASME B515 Incoloy 800 Capillary Pipes
- Incoloy 800HT Capillary Tubes in South Africa
- ASTM B407 Incoloy 800 Pipes & Tubes in Algeria
Other Types of Incoloy 800H Pipe and Tubes
Inconel 800H Seamless Pipe
ASTM B407 Incoloy Alloy 800ht Seamless Pipe, ASME SB407 Inconel 800 Seamless Pipe, UNS N08810 Seamless Pipe, JIS NCF 800h Seamless Pipe, Nickel Alloy 800ht Seamless Pipe Exporter, Inconel 800 Seamless Pipe Supplier, Incoloy 800h Seamless Pipe Manufacturer in Mumbai/India.
Inconel 800H Welded Pipe
ASTM B514 Incoloy Alloy 800 Welded Pipe, UNS N08800 Welded Pipe, ASME SB514 Inconel 800 Welded Pipes, Inconel 800ht Welded Pipe Supplier, Nickel Alloy 800h Welded Pipe Exporter, Incoloy 800h Welded Pipes Manufacturer in Mumbai/India.
Inconel 800H ERW Pipe
ASTM B514 Incoloy Alloy 800 ERW Pipe, UNS N08811 ERW Pipe, Incoloy 800ht ERW Pipe, ASME SB514 Inconel 800h ERW Pipes, Inconel 800ht ERW Pipe Supplier, Nickel Alloy 800h ERW Pipe Exporter, Incoloy 800 ERW Pipes Manufacturer in Mumbai/India.
Incoloy 800H Seamless Tube
ASTM B407 Inconel Alloy 800 Seamless Tube, UNS N08811 Seamless Tubes, ASME SB407 Inconel 800ht Seamless Tubes, Incoloy 800 Seamless Tubing Supplier, Nickel Alloy 800ht Seamless Tubing Exporter, Inconel 800h Seamless Tubes Manufacturer in Mumbai/India.
Inconel 800H Welded Tube
ASTM B515 Incoloy Alloy 800ht Welded Tube, UNS N08810 Welded Tubes, Inconel 800h Welded Tubes, ASME SB515 Inconel 800ht Welded Tubing, Inconel 800h Welded Tubing Supplier, Nickel Alloy 800ht Welded Tubing Exporter, Incoloy 800 Welded Tubes Manufacturer in Mumbai/India.
Inconel 800H ERW Tubes
ASTM B515 Incoloy Alloy 800ht ERW Tubes, UNS N08800 ERW Tubes, ASME SB515 Inconel 800 ERW Tubing, Inconel 800h ERW Tubing Supplier, Nickel Alloy 800h ERW Tubes Exporter, Incoloy 800 ERW Tubes Manufacturer in Mumbai/India.
Thickness
0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm
Quality Assurance
It is our policy to manufacture and control all our Incoloy N08800/ N08810/ N08811 Pipes and Tubes to international standards such as ASTM, ASME, BS, MSS, EN, DIN, or WERKSTOFFE. All of our products go through stringent quality tests before they are dispatched.
Weight Chart Of Incoloy 800H Pipes & Tubes
NPS | Outside Diameter | Wall Thickness |
| Weight | Weight | ||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
|
|
| 0.147 | 3.734 | 80 STD | 1.621 | 1.088 |
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
|
|
| 0.154 | 3.912 | 80 STD | 2.195 | 1.474 |
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
|
|
| 0.179 | 4.547 | 80 STD | 3.325 | 2.172 |
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
|
|
| 0.191 | 4.851 | 80 STD | 4.464 | 2.997 |
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
|
|
| 0.200 | 5.080 | 80 STD | 5.409 | 3.361 |
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
|
|
| 0.218 | 5.537 | 80 STD | 7.480 | 5.022 |
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
|
|
| 0.276 | 7.010 | 80 STD | 11.411 | 7.661 |
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
|
|
| 0.300 | 7.620 | 80 STD | 15.272 | 10.253 |
4″ | 4.500 | 114 | 0.237 | 6.020 |
| 16.073 | 10.790 |
|
|
| 0.337 | 8.560 |
| 22.318 | 14.983 |
6″ | 6.625 | 168 | 0.188 | 4.775 |
| 19.252 | 12.924 |
|
|
| 0.203 | 5.516 |
| 20.739 | 13.923 |
|
|
| 0.219 | 5.563 |
| 22.318 | 14.983 |
|
|
| 0.250 | 6.350 |
| 25.354 | 17.021 |
|
|
| 0.280 | 7.112 | 40 STD | 58.263 | 18.974 |
|
|
| 0.312 | 7.925 |
| 31.334 | 21.036 |
|
|
| 0.375 | 9.525 |
| 37.285 | 25.031 |
|
|
| 0.432 | 10.973 | 80 XHY | 42.561 | 28.573 |
|
|
| 0.500 | 12.700 |
| 48.719 | 32.708 |
8″ | 8.625 | 219 | 0.188 | 4.775 |
| 25.233 | 16.940 |
|
|
| 0.203 | 5.156 |
| 27.198 | 18.259 |
|
|
| 0.219 | 5.563 |
| 29.286 | 19.661 |
|
|
| 0.250 | 6.350 | 20 | 33.308 | 22.361 |
|
|
| 0.277 | 7.036 | 30 | 36.786 | 24.696 |
|
|
| 0.322 | 8.179 | 40 | 42.352 | 28.554 |
|
|
| 0.375 | 9.525 |
| 49.216 | 33.041 |
|
|
| 0.406 | 10.312 | 60 | 53.085 | 35.638 |
|
|
| 0.500 | 12.700 | 80 XHY | 64.627 | 43.388 |
10″ | 10.750 | 273 | 0.188 | 4.775 |
| 31.588 | 21.207 |
|
|
| 0.219 | 5.563 |
| 36.689 | 24.631 |
|
|
| 0.250 | 6.350 | 20 | 41.759 | 28.035 |
|
|
| 0.307 | 7.798 | 30 | 51.002 | 34.240 |
|
|
| 0.344 | 8.738 |
| 56.946 | 38.231 |
|
|
| 0.365 | 9.271 | 40 STD | 63.301 | 40.483 |
|
|
| 0.438 | 11.125 |
| 71.852 | 48.238 |
|
|
| 0.500 | 12.700 | 60 XHY | 81.530 | 54.735 |
|
|
| 0.594 | 15.088 | 80 | 95.969 | 64.429 |
12″ | 12.750 | 324 | 0.188 | 4.775 |
| 37.570 | 25.222 |
|
|
| 0.219 | 5.563 |
| 43.657 | 29.309 |
|
|
| 0.250 | 6.350 |
| 49.713 | 33.375 |
|
|
| 0.281 | 7.137 |
| 55.739 | 37.420 |
|
|
| 0.312 | 7.925 |
| 61.735 | 41.445 |
|
|
| 0.375 | 9.525 |
| 73.824 | 49.562 |
|
|
| 0.406 | 10.312 |
| 79.727 | 53.525 |
|
|
| 0.500 | 12.700 |
| 97.438 | 65.415 |
|
|
| 0.562 | 14.275 |
| 108.966 | 73.154 |
14″ | 14.000 | 356 | 0.188 | 4.775 |
| 41.308 | 27.732 |
|
|
| 0.219 | 5.563 |
| 48.012 | 32.233 |
|
|
| 0.250 | 6.350 | 20 | 54.685 | 36.713 |
|
|
| 0.281 | 7.137 |
| 61.327 | 41.172 |
|
|
| 0.312 | 7.925 |
| 67.939 | 45.611 |
|
|
| 0.375 | 9.525 | STD | 81.281 | 54.568 |
|
|
| 0.438 | 11.125 | 40 | 94.498 | 63.441 |
|
|
| 0.500 | 12.700 | XHY | 107.381 | 72.090 |
|
|
| 0.625 | 15.875 |
| 132.983 | 89.278 |
16” | 16.000 | 406 | 0.188 | 4.775 |
| 47.290 | 21.748 |
|
|
| 0.219 | 5.563 |
| 54.980 | 36.910 |
|
|
| 0.250 | 6.350 | 10 | 62.639 | 42.053 |
|
|
| 0.281 | 7.137 |
| 70.268 | 47.174 |
|
|
| 0.312 | 7.925 | 20 | 77.866 | 52.275 |
|
|
| 0.344 | 8.738 |
| 85.677 | 57.519 |
|
|
| 0.375 | 9.525 | 30 STD | 93.213 | 62.578 |
|
|
| 0.438 | 11.125 |
| 108.433 | 72.797 |
|
|
| 0.500 | 12.700 | 40 XHY | 123.289 | 82.770 |
18″ | 18.000 | 457 | 0.219 | 5.563 |
| 61.948 | 41.588 |
|
|
| 0.250 | 6.350 |
| 70.593 | 47.393 |
|
|
| 0.281 | 7.137 |
| 79.208 | 53.176 |
|
|
| 0.312 | 7.925 | 20 | 87.792 | 58.939 |
|
|
| 0.375 | 9.525 | STD | 105.144 | 70.588 |
|
|
| 0.438 | 11.125 | 30 | 122.369 | 82.152 |
|
|
| 0.500 | 12.700 | XHY | 139.198 | 93.450 |
|
|
| 0.562 | 14.275 | 40 | 155.904 | 104.666 |
|
|
| 0.625 | 15.875 |
| 172.754 | 115.978 |
20″ | 20.000 | 508 | 0.250 | 6.350 |
| 78.547 | 52.733 |
|
|
| 0.282 | 7.163 |
| 88.458 | 59.386 |
|
|
| 0.312 | 7.925 |
| 97.719 | 65.604 |
|
|
| 0.375 | 9.525 | 20 STD | 117.075 | 78.598 |
|
|
| 0.438 | 11.125 |
| 136.305 | 91.508 |
|
|
| 0.500 | 12.700 | 30 XHY | 155.106 | 104.130 |
|
|
| 0.594 | 15.088 | 40 | 183.378 | 123.110 |
|
|
| 0.625 | 15.875 |
| 192.640 | 129.328 |
|
|
| 0.688 | 17.475 |
| 211.368 | 141.901 |
24″ | 24.000 | 610 | 0.250 | 6.350 |
| 94.456 | 63.413 |
|
|
| 0.281 | 7.137 |
| 106.029 | 71.183 |
|
|
| 0.312 | 7.925 |
| 117.573 | 18.932 |
|
|
| 0.375 | 9.525 | 20 STD | 140.938 | 64.618 |
|
|
| 0.438 | 11.125 |
| 164.176 | 110.219 |
|
|
| 0.500 | 12.700 | XHY | 186.923 | 125.490 |
|
|
| 0.625 | 15.875 |
| 232.410 | 156.028 |
|
|
| 0.688 | 17.475 | 40 | 255.148 | 171.293 |
|
|
| 0.750 | 19.050 |
| 277.401 | 186.233 |
30″ | 30.000 | 762 | 0.250 | 6.350 |
| 118.318 | 79.433 |
|
|
| 0.281 | 7.137 |
| 132.851 | 89.189 |
|
|
| 0.312 | 7.925 | 10 | 147.353 | 98.925 |
|
|
| 0.375 | 9.525 | STD | 176.731 | 118.648 |
|
|
| 0.438 | 11.125 |
| 205.983 | 138.286 |
|
|
| 0.500 | 12.700 | 20 XHY | 234.647 | 157.530 |
|
|
| 0.625 | 15.875 | 30 | 292.066 | 196.078 |
|
|
| 0.688 | 17.475 |
| 320.817 | 215.380 |
|
|
| 0.750 | 19.050 |
| 348.988 | 234.293 |
36″ | 36.000 | 914 | 0.250 | 6.350 |
| 142.180 | 95.453 |
|
|
| 0.281 | 7.137 |
| 159.672 | 107.196 |
|
|
| 0.312 | 7.925 | 10 | 177.133 | 118.918 |
|
|
| 0.375 | 9.525 | STD | 215.525 | 142.678 |
|
|
| 0.438 | 11.125 |
| 247.790 | 166.353 |
|
|
| 0.500 | 12.700 | 20 XHY | 282.372 | 198.570 |
|
|
| 0.625 | 15.875 |
| 351.723 | 236.128 |
|
|
| 0.688 | 17.475 |
| 386.487 | 259.467 |
|
|
| 0.750 | 19.050 |
| 420.576 | 282.353 |
42″ | 42.000 | 1067 | 0.312 | 7.925 |
| 206.914 | 138.911 |
|
|
| 0.375 | 9.525 | STD | 248.319 | 166.708 |
|
|
| 0.500 | 12.700 | XHY | 33.097 | 221.610 |
|
|
| 0.750 | 19.050 |
| 492.163 | 330.413 |
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
|
|
| 0.438 | 11.125 |
| 331.404 | 222.487 |
|
|
| 0.500 | 12.700 | XHY | 377.822 | 253.650 |
|
|
| 0.750 | 19.050 |
| 563.750 | 378.473 |
|
|
| 0.875 | 22.225 |
| 655.969 | 440.383 |
Material Testing
The material tests performed on Incoloy 800/ 800H / 800HT pipes & Tubes include PMI Testing, Ultrasonic Testing, Mechanical Testing, Spectro Tests for Chemical Analysis of the Grade, Flaring Test, IGC, etc. The following are some of the tests performed at our facility. Any representative of your organization or third-party inspection agency is welcome to conduct stage-by-stage inspections.
Incoloy 800H Pipes & Tubes Application Industries
Our Incoloy 800H Pipes & Tubes are used in a wide range of applications and various industries. Below are a few of them:
- Petrochemical Industry
- Oil and Gas Industry
- Chemical Industry
- Power Plant Industry
- Energy Industry
- Pharmaceuticals Industry
- Pulp & Paper Industry
- Food Processing Industry
- Aerospace Industry
- Refining Industry
