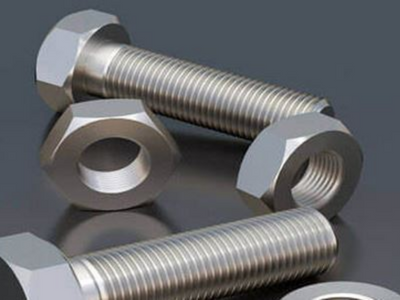

Incoloy 800HT Fasteners
High-Quality Incoloy 800 Fasteners, Incoloy 800h Industrial Fasteners, Incoloy 800ht Stud, Dimensions Of Asme B18.2.1 Alloy 800 Heavy Hex Bolt, Incoloy 800h Fasteners, Incoloy Alloy 800ht Bolts, Incoloy 800 Washer, Incoloy 800h Screw, Incoloy 800ht Nuts Supplier In Mumbai, India.
800/800h/800ht Fasteners, Incoloy N08800 Fastener, Nickel Alloy N08810 Hex Nuts, Uns N08811 Head Cap Screws, Alloy 1.4958 Coupling Nuts, 800 Incoloy Half And Full Threaded Stud Bolts Stockist, Din 1.4876 Fasteners, 800h Incoloy Alloy Flat Washer Stockholder, Incoloy 1.4859 Square Washers, 800ht Incoloy Alloy J / U Bolts Exporter In India.
DETAILED INFORMATION
It is a nickel-chromium-iron alloy fastener with high strength. The Incoloy alloy 800HT is widely used in equipment requiring high strength as well as resistance to carburization, oxidation, and other harmful effects that occur when it is exposed to high temperatures. The Incoloy® alloys 800H and 800HT are recommended for applications requiring ideal rupture and creep properties at high temperatures.
Nickel maintains an austenitic structure in the alloy, which makes it corrosion-resistant and oxidation-resistant. Nickel also ensures excellent resistance to embrittlement, corrosion cracking, scaling, etc., as well as enhancing corrosion resistance. In addition to excellent resistance to embrittlement due to precipitation of the sigma phase and chloride stress corrosion cracking, nickel in the alloy ensures excellent corrosion resistance.
The austenitic composition of these fasteners makes them resistant to aqueous, oxidizing, and reducing environments. Even after prolonged exposure, they keep their austenitic structure. In addition to being primarily applicable in temperatures up to 1100 degrees, these fasteners are resistant to general corrosion as well as offering superior stress rupture creep properties at elevated temperatures.
There are many applications for Incoloy 800ht Fasteners, including electronics, aerospace, furnace components, pulp and paper, chemicals, soaps, aerospace, food, and chemical handling equipment, fabrications, cement plants, sugar plants, power plants, steel plants, among others.
When machining these grades of fasteners compared to conventional cold-forming and hot-forming methods, there is a significant amount of work involved. Using matching filler metals, these grades of fasteners are welded together using a standard welding process, which results in superior ductility and formability.
Known for its quality, Mehtametals.com is one of the leading manufacturers and suppliers of Incoloy 800HT Fasteners in Mumbai, India. Using high-quality steels and alloys that comply with global standards, these Incoloy 800HT Fasteners have some impressive properties, such as strength, reliability, and durability. We manufacture Incoloy 800HT Fasteners to the highest possible standard. Incoloy 800 Fasteners are available in a wide variety of shapes, grades & sizes, and we can also manufacture them to your specifications.
Several tests are conducted before the Incoloy 800HT Fasteners are supplied to ensure that they do not leak, crack, or otherwise deteriorate. A variety of tests are conducted, including the mechanical properties test, proof load test, destructive/non-destructive test, flexure test, hardness test, wedge tensile strength, tensile test, compression test, as well as micro and macro tests. Other tests are also conducted, such as axial tensile tests, positive material identification, pitting corrosion tests, torsion tests, radiography, creep tests, intergranular corrosion tests, drop weight tests, flattening tests, and ultrasonic tests.
We at mehtametals.com are the most reputed company in the industry for manufacturing and distributing fasteners and custom requirements. Incoloy 800HT Fasteners are iron, nickel, and chromium alloy fasteners. We offer a wide variety of fasteners as well as customer requirements. It is highly resistant to oxidation, carburization, and retaining its austenitic structure at extreme temperatures. This product is highly resistant to reducing, aqueous, and oxidizing conditions. It is highly effective at temperatures up to 1100 degrees Celsius.
As an example, alloy 800HT Bolts and Nuts contain 1.20% aluminum and titanium, ensuring optimal performance at high temperatures. Consequently, ASTM B408 UNS N08811 Threaded Rod is an ideal structural fit. A Nickel Alloy 800H Hex Bolt can withstand temperatures up to 1200° F due to its controlled chemical composition.
As a result of such high temperatures, conventional stainless steels would disfigure, whereas UNS N08810 Screws maintain excellent mechanical properties and impact resistance. Also, DIN 1.4876 Stud Bolts have superior creep resistance properties to any other commonly used alloys.
CITIES WE DELIVER
Adoni, Amaravati, Anantapur, Chandragiri, Chittoor, Dowlaiswaram ,Eluru, Guntur, Kadapa, Kakinada, Kurnool, Machilipatnam, Nagarjunakoṇḍa, Rajahmundry, Srikakulam, Tirupati, Vijayawada, Visakhapatnam, Vizianagaram, Yemmiganur, Itanagar, Dhuburi, Dibrugarh, Dispur, Guwahati, Jorhat, Nagaon, Sivasagar, Silchar, Tezpur, Tinsukia, Ara, Barauni, Begusarai, Bettiah, Bhagalpur, Bihar, Sharif, Bodh Gaya, Buxar, Chapra, Darbhanga, Dehri, Dinapur Nizamat, Gaya, Hajipur, Jamalpur, Katihar, Madhubani, Motihari, Munger, Muzaffarpur, Patna, Purnia, Pusa, Saharsa, Samastipur, Sasaram, Sitamarhi, Siwan, Chandigarh, Ambikapur, Bhilai, Bilaspur, Dhamtari, Durg, Jagdalpur, Raipur, Rajnandgaon, Daman, Diu, Silvassa, Delhi, New Delhi, Madgaon, Panaji, Ahmadabad, Amreli, Bharuch, Bhavnagar, Bhuj, Dwarka, Gandhinagar, Godhra, Jamnagar, Junagadh, Kandla, Khambhat, Kheda, Mahesana, Morbi, Nadiad, Navsari, Okha, Palanpur, Patan, Porbandar, Rajkot, Surat, Surendranagar, Valsad, Veraval, Ambala, Bhiwani, Chandigarh, Faridabad, Firozpur Jhirka, Gurugram, Hansi, Hisar, Jind, Kaithal, Karnal, Kurukshetra, Panipat, Pehowa, Rewari, Rohtak, Sirsa, Sonipat, Bilaspur, Chamba, Dalhousie, Dharmshala, Hamirpur, Kangra, Kullu, Mandi, Nahan, Shimla, Una, Anantnag, Baramula, Doda, Gulmarg, Jammu, Kathua, Punch, Rajouri, Srinagar, Udhampur, Bokaro, Chaibasa, Deoghar, Dhanbad, Dumka, Giridih, Hazaribag, Jamshedpur, Jharia, Rajmahal, Ranchi, Saraikela, Badami, Ballari, Bengaluru, Belagavi, Bhadravati, Bidar, Chikkamagaluru, Chitradurga, Davangere, Halebid, Hassan, Hubballi-Dharwad, Kalaburagi, Kolar, Madikeri, Mandya, Mangaluru, Mysuru, Raichur, Shivamogga, Shravanabelagola, Shrirangapattana, Tumakuru, Vijayapura, Alappuzha, Vatakara, Idukki, Kannur, Kochi, Kollam, Kottayam, Kozhikode, Mattancheri, Palakkad, Thalassery, Thiruvananthapuram, Thrissur, Kargil, Leh, Balaghat, Barwani, Betul, Bharhut, Bhind, Bhojpur, Bhopal, Burhanpur, Chhatarpur, Chhindwara, Damoh, Datia, Dewas, Dhar, Dr. Ambedkar Nagar (Mhow), Guna, Gwalior, Hoshangabad, Indore, Itarsi, Jabalpur, Jhabua, Khajuraho, Khandwa, Khargone, Maheshwar, Mandla, Mandsaur, Morena, Murwara, Narsimhapur, Narsinghgarh, Narwar, Neemuch, Nowgong, Orchha, Panna, Raisen, Rajgarh, Ratlam, Rewa, Sagar, Sarangpur, Satna, Sehore, Seoni, Shahdol, Shajapur, Sheopur, Shivpuri, Ujjain, Vidisha, Ahmadnagar, Akola, Amravati, Aurangabad, Bhandara, Bhusawal, Bid, Buldhana, Chandrapur, Daulatabad, Dhule, Jalgaon, Kalyan, Karli, Kolhapur, Mahabaleshwar, Malegaon, Matheran, Mumbai, Nagpur, Nanded, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Ratnagiri, Sangli, Satara, Sevagram, Solapur, Thane, Ulhasnagar,n Vasai-Virar, Wardha, Yavatmal, Imphal, Cherrapunji, Shillong, Aizawl, Lunglei, Kohima, Mon, Phek, Wokha, Zunheboto, Balangir, Baleshwar, Baripada, Bhubaneshwar, Brahmapur, Cuttack, Dhenkanal, Kendujhar, Konark, Koraput, Paradip, Phulabani, Puri, Sambalpur, Udayagiri, Karaikal, Mahe, Puducherry, Yanam, Amritsar, Batala, Chandigarh, Faridkot, Firozpur, Gurdaspur, Hoshiarpur, Jalandhar, Kapurthala, Ludhiana, Nabha, Patiala, Rupnagar, Sangrur, Abu, Ajmer, Alwar, Amer, Barmer, Beawar, Bharatpur, Bhilwara, Bikaner, Bundi, Chittaurgarh, Churu, Dhaulpur, Dungarpur, Ganganagar, Hanumangarh, Jaipur, Jaisalmer, Jalor, Jhalawar, Jhunjhunu, Jodhpur, Kishangarh, Kota, Merta, Nagaur, Nathdwara, Pali, Phalodi, Pushkar, Sawai Madhopur, Shahpura, Sikar, Sirohi, Tonk, Udaipur, Gangtok, Gyalshing, Lachung, Mangan, Arcot, Chengalpattu, Chennai, Chidambaram, Coimbatore, Cuddalore, Dharmapuri, Dindigul, Erode, Kanchipuram, Kanniyakumari, Kodaikanal, Kumbakonam, Madurai, Mamallapuram, Nagappattinam, Nagercoil, Palayamkottai, Pudukkottai, Rajapalayam, Ramanathapuram, Salem, Thanjavur, Tiruchchirappalli, Tirunelveli, Tiruppur, Thoothukudi, Udhagamandalam, Vellore, Hyderabad, Karimnagar, Khammam, Mahbubnagar, Nizamabad, Sangareddi, Warangal, Agartala, Agra, Aligarh, Amroha, Ayodhya, Azamgarh, Bahraich, Ballia, Banda, Bara Banki, Bareilly, Basti, Bijnor, Bithur, Budaun, Bulandshahr, Deoria, Etah, Etawah, Faizabad, Farrukhabad-cum-Fatehgarh, Fatehpur, Fatehpur Sikri, Ghaziabad, Ghazipur, Gonda, Gorakhpur, Hamirpur, Hardoi, Hathras, Jalaun, Jaunpur, Jhansi, Kannauj, Kanpur, Lakhimpur, Lalitpur, Lucknow, Mainpuri, Mathura, Meerut, Mirzapur-Vindhyachal, Moradabad, Muzaffarnagar, Partapgarh, Pilibhit, Prayagraj, Rae Bareli, Rampur, Saharanpur, Sambhal, Shahjahanpur, Sitapur, Sultanpur, Tehri, Varanasi, Almora, Dehra Dun, Haridwar, Mussoorie, Nainital, Pithoragarh, Alipore, Alipur Duar, Asansol, Baharampur, Bally, Balurghat, Bankura, Baranagar, Barasat, Barrackpore, Basirhat, Bhatpara, Bishnupur, Budge Budge, Burdwan, Chandernagore, Darjeeling, Diamond Harbour, Dum Dum, Durgapur, Halisahar, Haora, Hugli, Ingraj Bazar, Jalpaiguri, Kalimpong, Kamarhati, Kanchrapara, Kharagpur, Cooch Behar, Kolkata, Krishnanagar, Malda, Midnapore, Murshidabad, Nabadwip, Palashi, Panihati, Purulia, Raiganj, Santipur, Shantiniketan, Shrirampur, Siliguri, Siuri, Tamluk, Titagarh
Incoloy 800HT Fasteners Specifications
Threads: | METRIC, BSF, BSW, UNC, UNF, or as need |
Standard | BS, ANSI, ASME, JIS, DIN, IS, GB, UNI, ASTM, ISO Fasteners |
Incoloy 800 Fasteners Standard | ANSI
DIN: DIN 912, DIN 603, DIN 933, DIN 6923, DIN 970, DIN 931, DIN 7981, DIN 934, DIN916, DIN 7985, DIN 7982, DIN 913, B.S. Fasteners UTS: UNEF, UNS, NPTF, UNC, NPT, UNF Fasteners ISO: ISO 7380, ISO 4033, ISO 4017, JIS standards, ISO 4032 Fasteners |
Fasteners/ Bolts Size | M3, M8, (M22), (M45), (M18), (M27), M12, M2, M30, M160, M20, M33, (M3.5), M10, M4, M6, M36, M5, M42, (M14), M16, M24, M48 and as per need |
Length | 3 milimeter - 200 milimeter |
Head drive: | Slotted, Six-Lobe, Phillips/Slot, Phillips, etc |
Fasteners Test Certificate | EN 10204 / 3.1 |
Incoloy 800 Fasteners raw materials of Source | JSPL, Usha Martin, Dhamm Steel, Tata Steel, RINL, Mukund Steel etc. |
Form | Square, Hex, Threading as per Gauge, Round Etc. |
Incoloy 800 Fasteners Process of Production |
|
Incoloy 800 Fasteners Surface Coating |
|
Chemical Properties Of Incoloy 800HT Fasteners
Grade | Mn | C | Si | S | Fe | Al-Ti | Cr | Ni | |
Incoloy 800 Fasteners | min. | – | – | – | – | 39.5 | 0.15 | 19.0 | 30.0 |
max. | 1.5 | 0.1 | 1.0 | 0.015 | – | 0.60 | 23.0 | 35.0 | |
Incoloy 800H Fasteners | min. | – | 0.05 | – | – | 39.5 | 0.15 | 19.0 | 30.0 |
max. | 1.5 | 0.1 | 1.0 | 0.015 | – | 0.60 | 23.0 | 35.0 | |
Incoloy 800HT Fasteners | min. | – | 0.06 | – | – | 39.5 | 0.85/0.25 | 19.0 | 30.0 |
max. | 1.5 | 0.1 | 1.0 | 0.015 | – | 1.20/0.60 | 23.0 | 35.0 |
Mechanical Properties Of Astm B166 Incoloy 800HT Fasteners
Incoloy 800 Fasteners Grade | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Hardness | |
Brinell (HB) max | Rockwell B (HR B) max | ||||
Incoloy 800-H-HT Fasteners | Psi – 30,000, MPa –205 | Psi – 75,000, MPa – 520 | 30 | – | – |
Incoloy 800HT Fasteners Equivalent Grade
STANDARD | UNS | OR | WERKSTOFF NR. | BS | JIS | AFNOR | GOST | EN |
Incoloy 800H Fasteners | N08810 | XH32T | 1.4958 / 1.4876 | NA 15(H) | NCF 800H | Z8NC33-21 | ЭИ670 | X5NiCrAlTi31-20 |
Incoloy 800 Fasteners | N08800 | XH32T | 1.4876 | NA 15 | NCF 800 | Z8NC32-21 | ЭИ670 | X10NiCrAlTi32-20 |
Incoloy 800HT Fasteners | N08811 | XH32T | 1.4859 / 1.4876 | NA 15(HT) | NCF 800HT | – | ЭИ670 | X8NiCrAlTi32-2 |
Incoloy 800HT Fasteners Dimensions
Incoloy 800Ht Bolt / Screw | M3 – M56 | 3/6" to 2" | Custom Sizes |
Incoloy 800ht Threaded Rods/ Bars | M3 – M56 | 3/6" to 2" | Custom Sizes |
Incoloy 800Ht Nuts | M3 – M56 | 3/6" to 2" | Custom Sizes |
Incoloy 800Ht Washers | M3 – M56 | Custom Sizes |
Incoloy 800Ht Machine Screws | M1.6 – M12 |
Incoloy 800ht Self-Tapping Screw | No.2 – No. 14 |
Sizes Of Incoloy 800HT Fasteners
Incoloy 800 Fasteners Sizes | B | A | C | Fasteners Weight (lbs.) Per 100 Pieces |
Inside Diameter | Thickness | Outside Diameter | ||
5/8 | 13/4 | 11/16 | 0.0134 | 8 |
1/2 | 13/8 | 9/16 | 0.0109 | 4 |
7/8 | 21/4 | 15/16 | 0.0165 | 15 |
3/4 | 2 | 13/16 | 0.0148 | 11 |
11/8 | 23/4 | 11/4 | 0.0165 | 22 |
1 | 21/2 | 11/16 | 0.0165 | 19 |
13/8 | 31/4 | 11/2 | 0.0180 | 33 |
11/4 | 3 | 13/8 | 0.0165 | 26 |
15/8 | 33/4 | 13/4 | 0.0180 | 43 |
11/2 | 31/2 | 15/8 | 0.0180 | 38 |
17/8 | 41/4 | 2 | 0.0180 | 57 |
13/4 | 4 | 17/8 | 0.0180 | 50 |
21/4 | 43/4 | 23/8 | 0.0220 | 83 |
2 | 41/2 | 21/8 | 0.0180 | 63 |
23/4 | 51/4 | 27/8 | 0.0259 | 110 |
21/2 | 5 | 25/8 | 0.0238 | 96 |
3 | 51/2 | 31/8 | 0.0284 | 130 |
Incoloy 800HT Fasteners Price In India
Description | Per Unit (INR) | Price in USD | Price in EURO |
Incoloy 800ht Stud Bolt To Astm B 564 Gr. Uns No.8811, Nace Mr-0175. Size: M 30x 3.5 Pitch X 343 Mm Long | 7,690 | 104.24 | 87.40 |
Incoloy 800ht Stud Bolts In Gr. Uns No.8811 Nace Mr-0175., Sz. M 30 X 3.5mm Pitch X 270mm Long | 5,202 | 70.51 | 59.12 |
Incoloy 800ht Stud Bolts In Gr. Uns No.8811 Nace Mr-0175., Sz. M30 X 3.5 Mm Pitch X 343 Mm Long | 6,440 | 87.29 | 73.19 |
66a-nuts/bolts/screws/washer Made Of Alloysteel Including Stainless Steel-Incoloy 800ht Studbolt 1 1/4 Inch X 235 Mm Long | 3,207 | 43.47 | 36.45 |
66a-nuts/bolts/screws/washer Made Of Alloysteel Including Stainless Steel-Incoloy 800ht Heavy Hex Nut 1-1/4 Inch -8 Un (2 | 1,685 | 22.84 | 19.15 |
66a-nuts/bolts/screws/washer Made Of Alloysteel Including Stainless Steel-Incoloy 800ht Studbolt 1 1/4 Inch X 265 Mm Long | 3,478 | 47.14 | 39.53 |
Other Grades Of Incoloy 800HT Fasteners
» Incoloy 800 Nuts
» Incoloy Alloy 800H Bolts
» Alloy 800HT Screw
» Incoloy® Alloy 800 Washer
» Incoloy 800H Studs
» Incoloy 800HT Square Nut
» Incoloy 1.4876 Fastener
» Incoloy 1.4958 Fasteners Stockist
» 800 Incoloy Machine Screw
» Incoloy 800HT Socket Head Cap Screw
» Incoloy 800 Wing Screw Supplier
» Incoloy Alloy 1.4859 Coupling Nuts
» Alloy 800H Allen Cap Screw Wholesaler
» Incoloy Alloy 800HT Split Lock Washers
» Incoloy 800HT Industrial Fasteners
» 800H Incoloy T-Head Bolts Manufacturer
» Incoloy Alloy 800 Eye Bolt Exporter
» Incoloy 800H Hex Nuts
» Incoloy N08800 Cap Nuts
» 800H Incoloy® Alloy Ogee Washers
» Incoloy Alloy 800HT Slotted Nuts
» Alloy N08810 U Bolts
» UNS N08811 Incoloy Alloy Cap Screw Suppliers
» Nickel Alloy 800 Socket Hexagon Head Screw
» Incoloy® Alloy 800H Pan Head Screw
» 800HT Incoloy T-Head Bolts
» 800 Incoloy Alloy Stud Bolts
» Incoloy 800H Machine Screws
Incoloy 800HT Fasteners Standard
Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
---|---|---|---|
DIN 931 | BS4882 | DIN 934 | DIN 912 |
DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
BS 1768 | BS 1769 | DIN 7984 | |
UNI 5731 | BS 1083 | ANSI B18.3 | |
UNI 5739 | BS 3692 | ISO 4762 | |
ISO 4014 | ISO 4032 | UNI 5931 | |
ISO 4017 | ISO 4033 | BS 2470 | |
BS 1769 | ANSI B18.2.2 | BS 4168 | |
BS 3692 | |||
ANSI B18.2.1 | |||
Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
DIN 913 | DIN 963 | DIN 938 | DIN 125 |
DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
DIN 916 | BS 1981 | BS 4439 | BS 3410 |
DIN 551 | BS 483 | BS 2693 | |
DIN 553 | BS 2470 | Spring Washers | |
DIN 438 | DIN 127 | ||
BS 4168 | BS 4464 | ||
BS 1802 |
Packaging
- The Mehta Metal.com team ensures that the packaging of the consignment plays a very important role, particularly in cases of international shipments where the consignment passes through several channels until it reaches its ultimate destination, which is why packaging is of the utmost importance to us.
Boxes and Crates | Shrink-wrapped |
Carton boxes | Wooden pallets |
Wooden boxes | Wooden crates |
Testings (Destructive, Non-Destructive)
- Chemical Analysis – Spectro Analysis
- Intergranular Corrosion (IGC) Test
- Pitting Resistance Test
- Dye Penetrant Test (DP Test)
- Micro Test
- Macro Test
- Hardness Test
- Flaring Test
Incoloy 800HT Fasteners Documentation
- NABL-approved Laboratory Test Reports
- Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
- Guarantee Letter of Incoloy 800 Fasteners
- Heat Treatment Charts
- Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
- Fumigation Certificates of Incoloy 800 Fasteners
- Form A for the purposes of the Generalized System of Preferences (GSP)
- Packing List including net weight and gross weight, number of boxes, Marks, and Numbers
- Test Certificates certifying NACE MR0103, NACE MR0175
- Commercial Invoice which includes HS Code
- Material Traceability Records of Incoloy 800 Fasteners
- Quality Assurance Plan (QAP)
- Raw Material Test Reports of Incoloy 800 Fasteners
Incoloy 800HT Fasteners Industrial Application
- Automobile industry
- In bridges and other structural steelworks
- Offshore industries
- Spiral Cases and penstocks in power plants
- Pylons and other architectural structures
- Transportation equipment
- Agriculture equipment
