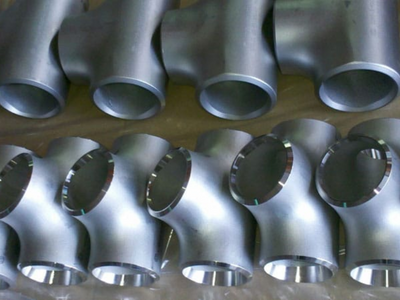

Incoloy 825 Butt weld Fittings
Incoloy Alloy 825 Butt weld Pipe Fittings, Incoloy 825 Butt weld Pipe Fittings, Inconel WPNICMC Buttweld Fittings, Incoloy Alloy 825 Seamless Pipe Fittings, 2.4858 Butt weld Pipe Fittings, Incoloy Alloy 825 Weldable Butt weld Fittings, UNS N08825 Buttweld Fittings, Incoloy 825 Pipe Fittings, UNS N08825 Pipe Fittings, 825 Incoloy Buttweld Fittings, Incoloy 825 Butt weld Fittings Manufacturer in Mumbai, India.
Competitive Price of Incoloy 825 SR Elbow, Largest Stockholder of Nickel Alloy 825 Pipe Fittings in India, Incoloy WPNICMC Pipe Elbow Trader, Incoloy Alloy 825 Equal Tee, Ready Stock of NiCr21Mo Incoloy Alloy Buttweld Elbow, ASTM B366 825 Buttweld Fittings Manufacturers in Mumbai, India.
DETAILED INFORMATION
Incoloy 825 Buttweld Fittings are manufactured using high-quality alloy. Our buyers are able to choose from a wide array of specifications, standards, sizes, types, and more. Furthermore, we offer them cut-made specifications based on their specific requirements and demands. The Incoloy 825 Buttweld Fittings are nickel-based high-temperature Incoloy Fittings with excellent features to offer.
As part of our manufacturing process, we manufacture Incoloy 825 Buttweld Fittings containing chromium, nickel, and iron with copper, titanium, and molybdenum alloying elements. In order to provide excellent corrosion resistance to a variety of corrosive atmospheres, this alloy has a chemical composition that is well-enhanced against aqueous corrosion. It is resistant to reducing and oxidizing acids, stresses corrosion cracking, pitting, and crevice corrosion. Because of its resistance to sulfuric and phosphoric acids, Incoloy 825 Buttweld Fittings are used in many applications, such as pollution control tools, gas, and oil piping.
Incoloy 825 Buttweld Fittings have many excellent features that contribute to their high demand. Following is a list of some of these benefits- Resistance to oxidizing and reducing acids, Resistance to stress corrosion cracking, Resistance to attacks such as crevice corrosion and pitting, Resistance to phosphoric acid and sulfuric acid, Excellent mechanical properties at room and elevated temperature, Long-lasting and holds high pressure, Anticorrosive body and much more.
In our organization, we have employees who are experienced and skilled. Incoloy 825 Buttweld Fittings are checked for quality standards during the manufacturing process by our employees to ensure that no poor quality 825 Buttweld Fittings are manufactured and delivered to our clients. Additionally, our experts conduct several other tests to ensure that these Incoloy 825 Fittings are of high quality, so we don't send them to our customers. To ensure that these Incoloy 825 Buttweld Fittings are delivered on time to our clients, we perform various destructive and non-destructive tests before delivering them.
There are small amounts of copper, titanium, and molybdenum in Incoloy 825 Pipe Fittings, giving them excellent mechanical properties. They also resist pitting and crevice corrosion well. As a certified manufacturer of Incoloy 825 Buttweld Fittings in India, we follow all national and international standards in the manufacturing process. However, the ASTM B366 N08825 Fittings can function smoothly at elevated temperatures. Using the latest technology, we ensure that our ASTM B366 WPNICMC Fittings are dimensionally accurate and made from pure raw materials.
Due to its corrosion-resistant nature in both oxidizing and reducing environments, our Incoloy 825 Elbow has a wide range of applications in various industries. Our Incoloy 825 Reducer is also resistant to chloride stress corrosion cracking. Before delivering our products to customers, we conduct a series of tests to ensure they are safe and accurate. Having an extensive stock of UNS N08825 Tee, we can customize our products according to the client's specific requirements for dimensions and finishes. We provide timely delivery of the highest quality pipe fittings.
CITIES WE DELIVER
Adoni, Amaravati, Anantapur, Chandragiri, Chittoor, Dowlaiswaram ,Eluru, Guntur, Kadapa, Kakinada, Kurnool, Machilipatnam, Nagarjunakoṇḍa, Rajahmundry, Srikakulam, Tirupati, Vijayawada, Visakhapatnam, Vizianagaram, Yemmiganur, Itanagar, Dhuburi, Dibrugarh, Dispur, Guwahati, Jorhat, Nagaon, Sivasagar, Silchar, Tezpur, Tinsukia, Ara, Barauni, Begusarai, Bettiah, Bhagalpur, Bihar, Sharif, Bodh Gaya, Buxar, Chapra, Darbhanga, Dehri, Dinapur Nizamat, Gaya, Hajipur, Jamalpur, Katihar, Madhubani, Motihari, Munger, Muzaffarpur, Patna, Purnia, Pusa, Saharsa, Samastipur, Sasaram, Sitamarhi, Siwan, Chandigarh, Ambikapur, Bhilai, Bilaspur, Dhamtari, Durg, Jagdalpur, Raipur, Rajnandgaon, Daman, Diu, Silvassa, Delhi, New Delhi, Madgaon, Panaji, Ahmadabad, Amreli, Bharuch, Bhavnagar, Bhuj, Dwarka, Gandhinagar, Godhra, Jamnagar, Junagadh, Kandla, Khambhat, Kheda, Mahesana, Morbi, Nadiad, Navsari, Okha, Palanpur, Patan, Porbandar, Rajkot, Surat, Surendranagar, Valsad, Veraval, Ambala, Bhiwani, Chandigarh, Faridabad, Firozpur Jhirka, Gurugram, Hansi, Hisar, Jind, Kaithal, Karnal, Kurukshetra, Panipat, Pehowa, Rewari, Rohtak, Sirsa, Sonipat, Bilaspur, Chamba, Dalhousie, Dharmshala, Hamirpur, Kangra, Kullu, Mandi, Nahan, Shimla, Una, Anantnag, Baramula, Doda, Gulmarg, Jammu, Kathua, Punch, Rajouri, Srinagar, Udhampur, Bokaro, Chaibasa, Deoghar, Dhanbad, Dumka, Giridih, Hazaribag, Jamshedpur, Jharia, Rajmahal, Ranchi, Saraikela, Badami, Ballari, Bengaluru, Belagavi, Bhadravati, Bidar, Chikkamagaluru, Chitradurga, Davangere, Halebid, Hassan, Hubballi-Dharwad, Kalaburagi, Kolar, Madikeri, Mandya, Mangaluru, Mysuru, Raichur, Shivamogga, Shravanabelagola, Shrirangapattana, Tumakuru, Vijayapura, Alappuzha, Vatakara, Idukki, Kannur, Kochi, Kollam, Kottayam, Kozhikode, Mattancheri, Palakkad, Thalassery, Thiruvananthapuram, Thrissur, Kargil, Leh, Balaghat, Barwani, Betul, Bharhut, Bhind, Bhojpur, Bhopal, Burhanpur, Chhatarpur, Chhindwara, Damoh, Datia, Dewas, Dhar, Dr. Ambedkar Nagar (Mhow), Guna, Gwalior, Hoshangabad, Indore, Itarsi, Jabalpur, Jhabua, Khajuraho, Khandwa, Khargone, Maheshwar, Mandla, Mandsaur, Morena, Murwara, Narsimhapur, Narsinghgarh, Narwar, Neemuch, Nowgong, Orchha, Panna, Raisen, Rajgarh, Ratlam, Rewa, Sagar, Sarangpur, Satna, Sehore, Seoni, Shahdol, Shajapur, Sheopur, Shivpuri, Ujjain, Vidisha, Ahmadnagar, Akola, Amravati, Aurangabad, Bhandara, Bhusawal, Bid, Buldhana, Chandrapur, Daulatabad, Dhule, Jalgaon, Kalyan, Karli, Kolhapur, Mahabaleshwar, Malegaon, Matheran, Mumbai, Nagpur, Nanded, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Ratnagiri, Sangli, Satara, Sevagram, Solapur, Thane, Ulhasnagar,n Vasai-Virar, Wardha, Yavatmal, Imphal, Cherrapunji, Shillong, Aizawl, Lunglei, Kohima, Mon, Phek, Wokha, Zunheboto, Balangir, Baleshwar, Baripada, Bhubaneshwar, Brahmapur, Cuttack, Dhenkanal, Kendujhar, Konark, Koraput, Paradip, Phulabani, Puri, Sambalpur, Udayagiri, Karaikal, Mahe, Puducherry, Yanam, Amritsar, Batala, Chandigarh, Faridkot, Firozpur, Gurdaspur, Hoshiarpur, Jalandhar, Kapurthala, Ludhiana, Nabha, Patiala, Rupnagar, Sangrur, Abu, Ajmer, Alwar, Amer, Barmer, Beawar, Bharatpur, Bhilwara, Bikaner, Bundi, Chittaurgarh, Churu, Dhaulpur, Dungarpur, Ganganagar, Hanumangarh, Jaipur, Jaisalmer, Jalor, Jhalawar, Jhunjhunu, Jodhpur, Kishangarh, Kota, Merta, Nagaur, Nathdwara, Pali, Phalodi, Pushkar, Sawai Madhopur, Shahpura, Sikar, Sirohi, Tonk, Udaipur, Gangtok, Gyalshing, Lachung, Mangan, Arcot, Chengalpattu, Chennai, Chidambaram, Coimbatore, Cuddalore, Dharmapuri, Dindigul, Erode, Kanchipuram, Kanniyakumari, Kodaikanal, Kumbakonam, Madurai, Mamallapuram, Nagappattinam, Nagercoil, Palayamkottai, Pudukkottai, Rajapalayam, Ramanathapuram, Salem, Thanjavur, Tiruchchirappalli, Tirunelveli, Tiruppur, Thoothukudi, Udhagamandalam, Vellore, Hyderabad, Karimnagar, Khammam, Mahbubnagar, Nizamabad, Sangareddi, Warangal, Agartala, Agra, Aligarh, Amroha, Ayodhya, Azamgarh, Bahraich, Ballia, Banda, Bara Banki, Bareilly, Basti, Bijnor, Bithur, Budaun, Bulandshahr, Deoria, Etah, Etawah, Faizabad, Farrukhabad-cum-Fatehgarh, Fatehpur, Fatehpur Sikri, Ghaziabad, Ghazipur, Gonda, Gorakhpur, Hamirpur, Hardoi, Hathras, Jalaun, Jaunpur, Jhansi, Kannauj, Kanpur, Lakhimpur, Lalitpur, Lucknow, Mainpuri, Mathura, Meerut, Mirzapur-Vindhyachal, Moradabad, Muzaffarnagar, Partapgarh, Pilibhit, Prayagraj, Rae Bareli, Rampur, Saharanpur, Sambhal, Shahjahanpur, Sitapur, Sultanpur, Tehri, Varanasi, Almora, Dehra Dun, Haridwar, Mussoorie, Nainital, Pithoragarh, Alipore, Alipur Duar, Asansol, Baharampur, Bally, Balurghat, Bankura, Baranagar, Barasat, Barrackpore, Basirhat, Bhatpara, Bishnupur, Budge Budge, Burdwan, Chandernagore, Darjeeling, Diamond Harbour, Dum Dum, Durgapur, Halisahar, Haora, Hugli, Ingraj Bazar, Jalpaiguri, Kalimpong, Kamarhati, Kanchrapara, Kharagpur, Cooch Behar, Kolkata, Krishnanagar, Malda, Midnapore, Murshidabad, Nabadwip, Palashi, Panihati, Purulia, Raiganj, Santipur, Shantiniketan, Shrirampur, Siliguri, Siuri, Tamluk, Titagarh
Incoloy 825 Butt weld Fittings Specification
825 Pipe Fittings Specifications | ASTM B366/ ASME SB366 |
825 Incoloy Alloy Pipe Fittings size | 825 Seamless Butt Weld Fittings: 1/2" - 10" 825 Welded Butt Weld Fittings: 1/2" - 48" |
Alloy 825 Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
Incoloy 825 Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
825 Buttweld Pipe FittingsType | DN15-DN1200 |
ASTM B366 825 Buttweld Fitting Connection | Welding |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Grade 825 Pipe Fitting |
Size Range | ½" NB to 24" NB in Sch 10s, the 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 825 Buttweld Fitting |
ASTM B366 825 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
825 Incoloy Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third-Party Inspection Report, etc |
SA 366 825 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
Specialized manufacturer of | Alloy UNS N08825, N08825 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Chemical Composition Of Incoloy 825 Butt weld Fittings
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Mechanical Properties Of Incoloy 825 Butt weld Fittings
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000, MPa – 550 | Psi – 32,000, MPa – 220 | 30 % |
Astm B366 N08825 Incoloy 825 Butt weld Fittings Physical Properties
Density | Melting Range | Specific Heat | Electrical Resistivity | ||
g/cm3 | °C | °F | J/kg.k | Btu/lb. °F | µΩ·m |
8.14 | 1370-1400 | 2500-2550 | 440 | 0.105 | 1130 |
Equivalent Grades Incoloy 825 Butt weld Fittings
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Standard Dimensions Of Incoloy 825 Butt weld Fittings
NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
(inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
(millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
(inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) | Center to End (Inches) | Center to End (Inches) | Lap Diameter (Inches) | Long Length (Inches) | Short Length (Inches) |
1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Uns N08825 Incoloy 825 Butt weld Fittings Pressure Rating Formula
Pressure-Temperature ratings for Incoloy 825 Pipe Fittings (psig) | |||||
Temperature Ratings | Pressure Class | ||||
150 | 300 | ||||
1/4 - 1 inch. | 1 1/4 - 2 inches. | 2 1/2 - 3 inches. | |||
(oF) | (C) | ||||
-20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
200 | 93 | 265 | 1785 | 1350 | 910 |
250 | 121 | 225 | 1575 | 1200 | 825 |
300 | 149 | 185 | 1360 | 1050 | 735 |
350 | 177 | 150 | 1150 | 900 | 650 |
400 | 204 | - | 935 | 750 | 560 |
450 | 232 | - | 725 | 600 | 475 |
500 | 260 | - | 510 | 450 | 385 |
550 | 288 | - | 300 | 300 | 300 |
|
|
|
|
|
|
Incoloy 825 Butt weld Fittings Weight Chart Table
DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
DN (Normal Pipe Sizes) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
Concentric Pipe Reducer | Eccentric Pipe Reducer | Reducing And Unequal Tee | Concentric Pipe Reducer | Eccentric Pipe Reducer | Reducing And Unequal Tee | Concentric Pipe Reducer | Eccentric Pipe Reducer | Reducing And Unequal Tee | |
40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Size Chart Of Incoloy 825 Butt weld Fittings
O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
5/16 | 0.313 | 1/16 | 27 |
13/32 | 0.405 | 1/8 | 27 |
35/64 | 0.540 | 1/4 | 18 |
43/64 | 0.675 | 3/8 | 18 |
27/32 | 0.840 | 1/2 | 14 |
1-3/64 | 1.050 | 3/4 | 14 |
1-5/16 | 1.315 | 1 | 11-1/2 |
1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
2-3/8 | 2.375 | 2 | 11-1/2 |
2-7/8 | 2.875 | 2-1/2 | 8 |
3-1/2 | 3.500 | 3 | 8 |
4 | 4.000 | 3-1/2 | 8 |
4-1/2 | 4.500 | 4 | 8 |
Incoloy 825 Butt weld Fittings Production Range
Elbow
Incoloy 825 Pipe Elbow
Incoloy® Alloy 825 Buttweld Elbow
825 Alloy Buttweld Elbow
UNS N08825 Buttweld Elbow
UNS N08825 3D Elbow
2.4858 Buttweld Seamless Elbow
2.4858 Buttweld Welded Elbow
Alloy 825 90 Deg Butt weld Elbow
825 Incoloy Alloy 45-Degree Buttweld Elbow
Alloy NA 16 180 Deg. Buttweld Elbow
Alloy 825 5D Buttweld Elbow
Incoloy NA 16 10D Buttweld Elbow
ASTM B366 825 Butt weld Elbow
ANSI B16.9 825 Butt weld Elbow
Tee
Incoloy 825 Tee
Incoloy® Alloy 825 Buttweld Tee
825 Alloy Buttweld Tee
UNS N08825 Buttweld Tee
UNS N08825 Equal Tee
2.4858 Buttweld Tee
Incoloy 2.4858 Buttweld Tee
825 Incoloy Alloy Buttweld Seamless Tee
Alloy 825 Buttweld Welded Tee
Incoloy Alloy 825 Buttweld Two Joint Tee
Incoloy NA 16 Butt weld Unequal Tees
825 Incoloy Alloy Buttweld Reducing Tee
ASTM B366 825 Butt weld Tee
ANSI B16.9 825 Butt weld Tee
Cross
Incoloy 825 Cross
Incoloy® Alloy 825 Buttweld Cross
825 Alloy Buttweld Cross
UNS N08825 Buttweld Cross
UNS N08825 Equal Cross
2.4858 Buttweld Cross
Incoloy 2.4858 Buttweld Cross
825 Incoloy Alloy Buttweld Seamless Cross
Alloy 825 Buttweld Welded Cross
Nickel Alloy 825 Buttweld Two Joint Cross
Incoloy 825 Butt weld Unequal Cross
825 Incoloy Alloy Buttweld Reducing Cross
ASTM B366 825 Butt weld Cross
ANSI B16.9 825 Butt weld Cross
Reducer
Incoloy 825 Pipe Reducer
Nickel Alloy 825 Buttweld Reducer
825 Alloy Buttweld Reducer
UNS N08825 Buttweld Reducer
UNS N08825 Pipe Reducer
2.4858 Buttweld Reducer
825 Buttweld Reducer
2.4858 Incoloy Alloy Buttweld Seamless Reducer
Alloy 825 Buttweld Welded Reducer
Incoloy 825 Buttweld Two Joint Reducer
Incoloy 825 Concentric Reducer
NiCr21Mo Incoloy Alloy Eccentric Reducer
ASTM B366 825 Butt weld Reducer
ANSI B16.9 825 Butt weld Reducer
Pipe Cap
Incoloy 825 Pipe Cap
Nickel Alloy 825 Buttweld Cap
825 Alloy Buttweld Cap
UNS N08825 Buttweld End Cap
UNS N08825 Pipe Cap
2.4858 Buttweld Pipe End Cap
2.4858 Buttweld Pipe Cap
Incoloy 825 Seamless Pipe Cap
Alloy 825 Buttweld Welded Cap
Incoloy 825 Buttweld Two Joint Cap
Alloy 825 Butt weld End Pipe Cap
NiCr21Mo Buttweld Cap
ASTM B366 825 Butt weld Cap
ANSI B16.9 825 Butt weld Cap
Pipe Bend
Incoloy 825 Pipe Bend
Alloy 825 Buttweld Bend
825 Alloy Buttweld Bend
UNS N08825 Buttweld Bend
UNS N08825 Pipe Bend
2.4858 Buttweld Seamless Bend
Incoloy 2.4858 Buttweld Bend
Incoloy 825 Seamless Long Radius Bends
Nickel Alloy 825 Buttweld Welded Bend
Incoloy 825 Buttweld Two Joint Bend
Alloy NiCr21Mo Long Radius Bends
NA 16 Incoloy Alloy Piggable Bend
ASTM B366 825 U Pipe Bends
ANSI B16.9 825 Hot Induction Bend
Stub End
Incoloy 825 Stub End
Nickel Alloy 825 Buttweld Stub End
825 Alloy Buttweld Stub End
UNS N08825 Buttweld Stub End
UNS N08825 Stub End
2.4858 Buttweld Stub End
825 Buttweld Stub End
Incoloy 2.4858 Seamless Stub End
Alloy 825 Buttweld Welded Stub End
Alloy 825 Buttweld Two Joint Stub End
Incoloy NiCr21Mo Long Stub End
825 Incoloy Alloy Lap Joint Stub End
ASTM B366 825 Short Stub End
ANSI B16.9 825 Butt weld Stub End
Lateral Tee
Incoloy 825 Lateral Tee
Nickel Alloy 825 Buttweld Lateral Tee
825 Alloy Buttweld Lateral Tee
UNS N08825 Buttweld Lateral Tee
UNS N08825 Lateral Tee
2.4858 Buttweld Lateral Tee
825 Buttweld Lateral Tee
Incoloy 2.4858 Seamless Lateral Tee
Nickel Alloy 825 Buttweld Welded Lateral Tee
Alloy 825 Buttweld Two Joint Lateral Tee
Incoloy NiCr21Mo Butt weld Lateral Tee
825 Incoloy Alloy Buttweld Lateral Tee
ASTM B366 825 Lateral Tee
ANSI B16.9 825 Lateral Tee
Pipe Nipple
Incoloy 825 Pipe Nipple
Nickel Alloy 825 Buttweld Pipe Nipple
825 Alloy Buttweld Pipe Nipple
UNS N08825 Buttweld Pipe Nipple
UNS N08825 Pipe Nipple
2.4858 Buttweld Pipe Nipple
2.4858 Buttweld Swage Nipple
Incoloy 825 Seamless Pipe Nipple
Incoloy® Alloy 825 Buttweld Welded Nipple
Alloy 825 Buttweld Two Joint Nipple
Incoloy 825 Swage Nipple
NA 16 Incoloy Alloy Buttweld Pipe Nipple
ASTM B366 825 Pipe Nipple
ANSI B16.9 825 Butt weld Nipple
Incoloy 825 Butt weld Fittings Standard
American Steel Pipe Fittings Standard | |
Standard Code | Standard Name |
ANSI ASME SA-366 | Forged Durimet pipe fittings |
ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
ANSI ASME B16.28 | Wrought steel butt-welding short-radius elbows and returns |
ISO 5251 | Incoloy butt-welding fittings |
MSS SP-43 | Wrought Incoloy butt-welding fittings |
MSS SP-75 | Forging butt-welding fittings |
German Steel Pipe Fittings Standard | |
DIN 2605 | Steel butt-welding pipe fittings. elbows and bends |
DIN 2615 | Steel butt-welding pipe fittings.tees |
DIN 2616 | Steel butt-welding pipe fittings.reducers |
DIN 2617 | Steel butt-welding pipe fittings.caps |
Japanese Steel Pipe Fittings Standard | |
JIS B2311 | Universal steel butt-welding pipe fittings |
JIS B2312 | Steel butt-welding pipe fittings |
JIS B2313 | Steel plate butt-welding pipe fittings |
Other Steel Pipe Fittings Standard | |
EN 1025 | 3 Butt-welding pipe fittings |
Incoloy 825 Butt weld Fittings Ready Stock In India
Incoloy 825 90° LR Elbow | 825 Incoloy Seamless Pipe Fittings |
Incoloy 825 90° Weldable SR Elbow | Alloy UNS N08825 Pipe Reducers |
ASME B16.9 Incoloy 825 90° Reducing Elbow | 825 Nickel Alloy Welded Pipe Fittings |
MSS SP-43 Incoloy 825 Stub End | ASTM B366 825 Incoloy Caps |
Incoloy NA 16 Pipe Fittings Supplier | B366 825 Two Joint Pipe Fittings |
ASTM B366 Incoloy 825 Reducing Tee | ASTM B366 825 Lateral Tee Supplier |
Sch 10 Incoloy 825 Concentric Reducer | Incoloy® Alloy 825 Welded Pipe Fittings Dealer |
Sch 80 Nickel Alloy 825 Eccentric Reducer | B366 Grade 825 Industrial Buttweld Pipe Fittings |
ANSI B16.9 Incoloy 825 Pipe Cap | UNS N08825 Incoloy Weldable 3D Elbow |
825 Incoloy 180° Buttweld Elbow | Alloy 825 Lap Joint Stub Ends Stockists |
ASTM B366 Gr 825 45° Long Radius Elbow | Incoloy 2.4858 Incoloy Alloy Short Radius Elbow Exporter |
B366 Grade 825 Pipe Bends | ASTM B366 825 Incoloy Pipe Elbow |
825 Incoloy 180° LR Return Bend | 825 Incoloy® Alloy Seamless Reducing Tee |
825 Nickel Alloy Seamless Fittings | Incoloy 825 1D Elbow/3D Elbow/5D Elbow |
Incoloy 825 Weldable 1.5D Elbow | 825 Incoloy Alloy Two Halve Butt weld Fittings |
Incoloy 2.4858 Stub End Exporter | 1 Inch Incoloy 825 Buttweld Pipe Fittings |
6 Inch Incoloy Alloy 825 Buttweld Pipe Fittings | 825 Incoloy Buttweld Reducing Nipple |
Incoloy Alloy 825 Seamless Buttweld Fittings | Sch 80 Incoloy 825 Pipe Fittings |
ASTM B366 Incoloy 825 Eccentric Reducer | ASME B16.9 Incoloy NiCr21Mo 10D Elbow |
NiCr21Mo Incoloy® Alloy Two Joint Pipe Fittings | 825 Incoloy LR Elbow Supplier |
Alloy 825 Wrought Austenitic 45 Degree Elbow | ASTM B366 825 Welded Pipe Fittings |
NiCr21Mo Incoloy Alloy 90° Seamless Elbow Dealer | Incoloy 825 Pipe Fittings Stockist |
Incoloy 825 Pipe Fittings Supplier in Mumbai | Alloy 825 Butt weld Pipe Fittings Manufacturer in India |
Incoloy 2.4858 Pipe Fittings Dimensions | Incoloy NA 16 Buttweld Reducing Nipple |
Wrought Austenitic Incoloy 825 Pipe Fittings | ASTM B366 825 Eccentric Reducer at Best Price |
Alloy NiCr21Mo Equal Cross Supplier | Suppliers of 825 Nickel Alloy End Pipe Cap |
Incoloy 825 Butt weld Fittings Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
Distribution Network
Our Products
Contact Us
Send Us Message
Got a question? We'd love to hear from you. Send us a message & we'll respond as soon as possible.
Call Us
8080998069 | 9820584986
Visit Us
1st Floor, Plot No. 136, Deccan Chambers, JSS Road, Ambewadi, Mumbai 400004
