What are Inconel 625 Pipes And Tubes?
With outstanding corrosion resistance, oxidation resistance, and durability, Inconel 625 is a nickel-based alloy of high strength. For several reasons, Inconel 625 Density is considered a good fit for marine applications because of their exceptionally high fatigue strength, nonmagnetic inconel 625 properties and ability to operate at temperatures ranging from cryogenic to 2,000°F (1,093°C). inconel 625 Density melting point Has different numbers.
One of the most popular materials for use in the nuclear industry is Inconel 625 tubes. Steam generators, control rods, reactor cores, and waste reprocessing equipment in nuclear power plants use Inconel 625 annealed tubes, for example.
A steam generator's working mechanism uses basic thermodynamic principles to operate. Nickel Alloy 625 seamless tubes and Inconel 625 Flanges are essential components of nuclear power plants.
Furthermore, the mechanical and physical inconel 625 properties seamless tubes are unaffected by the extremely high heat. In addition to being strong, the alloy 625 seamless tubes are tough and corrosion-resistant. Alloy 625 composition Has Various Characters.inconel 625 hardness Is Based on elements which they add.
These Inconel 625 Tubes should be machined in the annealed condition. Our Inconel 625 Seamless Pipes have similar operating characteristics to other nickel-chromium filler metals. In addition to gas-shielded welding, consumable electrodes or tungsten electrodes can also be used to weld these Inconel 625 Welded Pipes. It is important to note, however, that Inconel 625 EFW Pipes work harden quickly, so intermediate annealing treatments may be required for complex component forming operations. It is sometimes recommended to anneal these Inconel 625 ERW Pipes at a minimum temperature of 2000 degrees F (1093 degrees C) to further enhance resistance to sensitization. Alloy 625 Seamless Tubes are resistant to caustics and chloride ions.
Alloy 625 Welded Tubes are a nickel-based superalloy with excellent corrosion and oxidation resistance. This structure is undergoing cyclic temperature conditions and can be improved using these Alloy 625 EFW Tubes. These Inconel UNS N06625 Tubes are often used for flare stacks, seawater components, and more. They can be cooled between weld passes using auxiliary cooling methods, as such methods do not introduce contaminants.

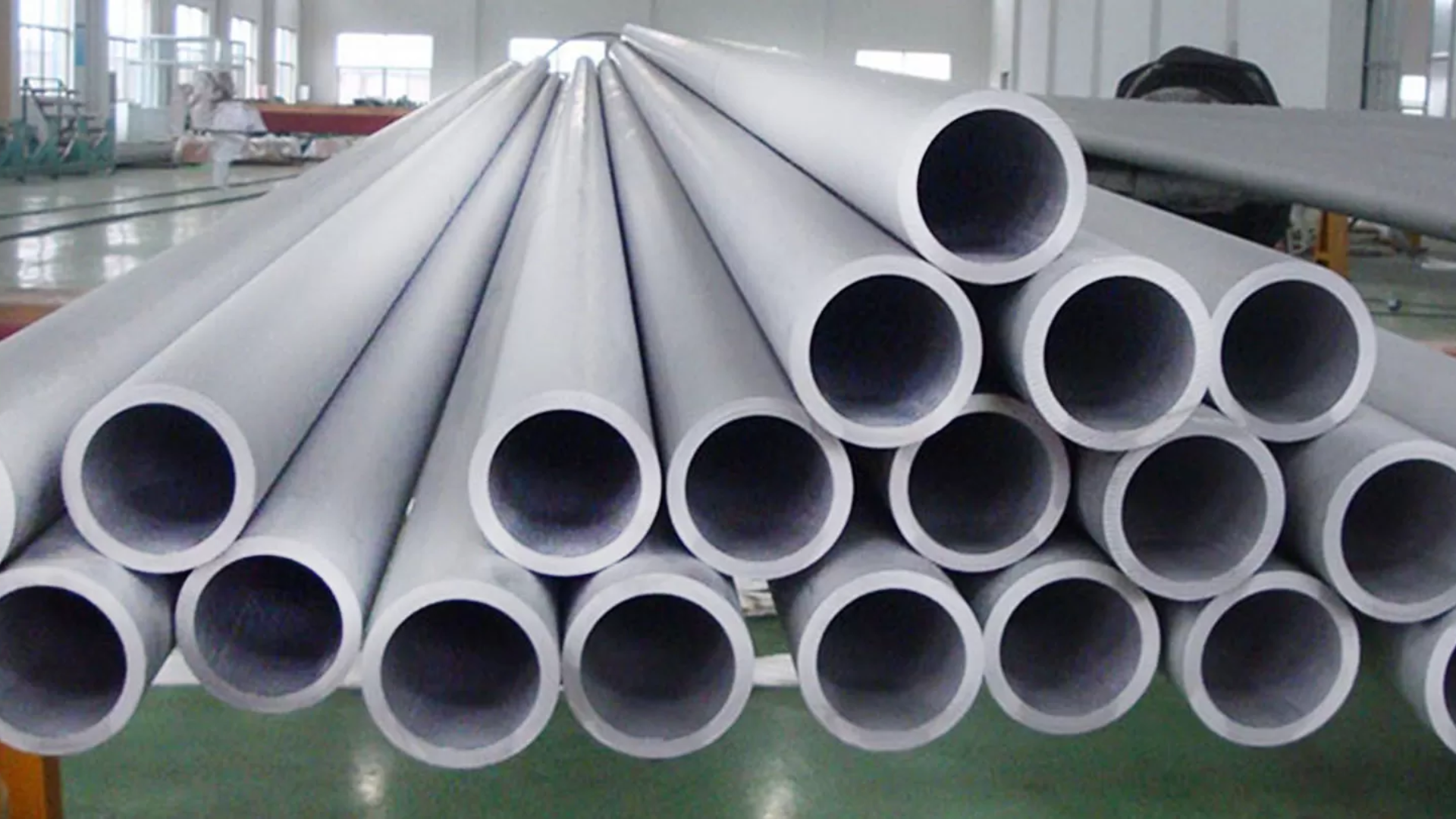

Inconel 625 Pipes & Tubes
The main reason for this is that the alloy can not only withstand high stress in and out of the water but can also withstand stress over a wide temperature range. Inconel 625 Pipes can also withstand highly acidic environments. Aside from having high inconel 625 yield strength
, creep resistance, and weldability, ASME Sb 444 UNS N06625 Alloy 625 Pipes are also suitable for nuclear base applications. For high-temperature and high-pressure applications, Inconel 625 Welded Pipes are a solid, strengthened superalloy.
It has high weldability, has a wide range of operating temperatures, including cryogenic, and is resistant to oxidation and corrosion. Niobium has been added to the material's composition, making it highly corrosion resistant. In addition to its corrosion resistance, Alloy 625 Tube has an operating temperature of 982 degrees Celsius. The composition consists of carbon, manganese, silicon, sulfur, iron, 20% chromium, and 58% nickel.
A variety of inconel 625 pipes are available, including round, square, hollow, rectangular, hydraulic, coiled, straight pipes, pancake coils, etc. All ASTM B444 inconel 625 pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or as requested by the customer).
Inconel 625 is a high-performance nickel-chromium-molybdenum alloy known for its high level of inconel 625 yield strength, temperature resistance, and corrosion resistance. This superalloy is composed mainly of nickel (58% min.)
The strength of Inconel 625 is not only due to its nickel-chromium base but also due to niobium and molybdenum, which harden the alloy. Niobium and molybdenum interact to strengthen the alloy matrix, resulting in high strength without precipitation-hardening. This superalloy has a tensile strength of 690 MPa and a yield strength of 275 MPa.
With a inconel 625 melting point of about 1300°C and a thermal expansion coefficient of 1.28 x 10-5 1/K (at 20°C), Inconel 625 resists a wide range of temperature extremes from cryogenic to extremely high.
The titanium and niobium compositions of the oxide film on Inconel 625 increase dramatically when exposed to oxidising agents at high temperatures.
Having a unique combination of components makes Inconel 625 very corrosion resistant, which explains its excellent performance in high salinity seawater, as well as in milder environments such as fresh water and standard atmospheric conditions.
Its nickel-chromium matrix protects Inconel 625 from oxidizing agents, while molybdenum prevents pitting corrosion. In 15% sulfuric acid, the material corrodes at only 0.188 mm per year.
A nickel, chromium and molybdenum alloy, enriched with niobium, makes up INCONEL 625 alloy. By combining this with molybdenum, it distorts the alloy's atomic matrix, resulting in high inconel 625 yield strength when annealed without needing to be strengthened.
There are several types of marine applications for INCONEL 625, including steam liner bellows, sheathing for undersea communication cables, and various submarine components, such as auxiliary propulsion motors and quick-disconnect fittings.
Applications of Inconel 625
Marine applications
Its high corrosion resistance, especially against pitting and crevices, makes Inconel 625 an excellent material for underwater applications in high salinity. Boat propeller blades are made from the material, as well as mooring lines for ships and similar vessels, submarine accessories, and oceanographic equipment parts.
Aerospace equipment
Inconel 625 is also used in the aircraft industry for exhaust equipment, fuel lines, heat exchanger casings, and rocket components because it performs well under extreme conditions.
Nuclear technology
In addition to its strength, Inconel 625 is also resistant to corrosion and stress, making it a suitable material for nuclear reactor components, such as control rods and reactor cores. Inconel 625 can withstand temperatures above 650°C.
Industrial processing
Because the alloy is conveniently fabricable and resistant to heat and corrosion, it is a useful ingredient in manufacturing equipment such as vessels, heat exchangers, valves, and fluid distribution systems. As a result of its excellent weldability, it is also an ideal component for pipes and tubes in manufacturing facilities.
Inconel 625 Pipes & Tubes Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
