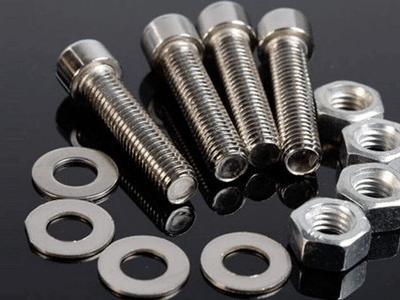

Nickel 200 Alloy Fasteners / UNS N02200 / DIN 2.4066
Nickel Alloy 200 Industrial Fasteners, Nickel Alloy 200 Fasteners, High-Quality Nickel 200 Fasteners, Nickel Alloy 200 Nuts, Dimensions Of Asme B18.2.1 Alloy 200 Heavy Hex Bolt, Nickel Alloy 200 Screw, Nickel Alloy 200 Stud, Nickel 200 Washer, Nickel 200 Bolts Supplier In Mumbai, India.
Nickel Uns N02200 Fastener, Alloy Din 2.4066 Fasteners, Nickel Alloy 200 Hex Nuts, High Nickel Alloy 200 Square Washers, Jis Nw 2200 Fasteners, 200 Nickel Alloy Half And Full Threaded Stud Bolts Stockist, Nickel 200 J / U Bolts, Nickel Alloy 200 Coupling Nuts, High Nickel 200 Flat Washer Stockholder, 200 Nickel Alloy Head Cap Screws Exporter In India.
DETAILED INFORMATION
As one of the strongest metals, nickel alloy fasteners are preferred for several applications due to their high corrosion resistance. Nickel alloy fasteners can be alloyed with any other metals to create the strongest alloys. Nevertheless, nickel alloy bolts (nickel alloy fasteners) are often used in applications that require high temperatures from the material. Unlike nickel alloy threaded rods, ordinary steel alloys tend to decay upon oxidation.
Additionally, nickel alloy bolts resist some form of reducing agent in addition to being resistant to oxidation corrosion. In addition to being able to withstand corrosion in caustic alkalies, nickel 200 fasteners can also be used at temperatures below 600° F. Nickel 201 fasteners are also resistant to dry fluorine and hydroxides. The carbon content is lower in nickel 201 fasteners than in nickel 200.
In both alloys, the carbon content is low, but the hardness has also been reduced. Both alloys are commercially wrought pure nickel alloy nuts. UNS N02201 Studs are known to prevent embrittlement caused by intergranular carbon because they have a lower carbon content. In general, nickel alloy studs do not suffer from intergranular corrosion, which affects conventional steel at high temperatures.
In addition to producing, supplying, and exporting Nickel Alloy 200 Fasteners, our company offers odd-size fasteners tailored to your application needs. For general-purpose applications, we also store these fasteners in a variety of standards, designations, specifications, and custom dimensions in addition to accepting special orders for specific customer requirements. As an ISO-certified company, we produce products in accordance with industry standards.
It defines the higher strength and toughness even in impact applications, due to its compatibility with adverse environments.
As a result of their high corrosion resistance, nickel alloy fasteners are widely used throughout the world. Generally, nickel alloy bolts (nickel alloy fasteners ) are used in applications where high-temperature environments are required. In contrast to nickel alloy threaded rods, ordinary steel alloys tend to decay with age.
As well as being resistant to corrosion caused by oxidation, nickel alloy bolts are also resistant to corrosion caused by reducing agents. It is possible to use nickel 200 fasteners at temperatures below 600° F, while also exhibiting outstanding corrosion resistance under caustic alkalies. In addition to having outstanding resistance to dry fluorine and hydroxides, nickel 201 fasteners have a lower carbon content than nickel 200 fasteners.
CITIES WE DELIVER
Adoni, Amaravati, Anantapur, Chandragiri, Chittoor, Dowlaiswaram ,Eluru, Guntur, Kadapa, Kakinada, Kurnool, Machilipatnam, Nagarjunakoṇḍa, Rajahmundry, Srikakulam, Tirupati, Vijayawada, Visakhapatnam, Vizianagaram, Yemmiganur, Itanagar, Dhuburi, Dibrugarh, Dispur, Guwahati, Jorhat, Nagaon, Sivasagar, Silchar, Tezpur, Tinsukia, Ara, Barauni, Begusarai, Bettiah, Bhagalpur, Bihar, Sharif, Bodh Gaya, Buxar, Chapra, Darbhanga, Dehri, Dinapur Nizamat, Gaya, Hajipur, Jamalpur, Katihar, Madhubani, Motihari, Munger, Muzaffarpur, Patna, Purnia, Pusa, Saharsa, Samastipur, Sasaram, Sitamarhi, Siwan, Chandigarh, Ambikapur, Bhilai, Bilaspur, Dhamtari, Durg, Jagdalpur, Raipur, Rajnandgaon, Daman, Diu, Silvassa, Delhi, New Delhi, Madgaon, Panaji, Ahmadabad, Amreli, Bharuch, Bhavnagar, Bhuj, Dwarka, Gandhinagar, Godhra, Jamnagar, Junagadh, Kandla, Khambhat, Kheda, Mahesana, Morbi, Nadiad, Navsari, Okha, Palanpur, Patan, Porbandar, Rajkot, Surat, Surendranagar, Valsad, Veraval, Ambala, Bhiwani, Chandigarh, Faridabad, Firozpur Jhirka, Gurugram, Hansi, Hisar, Jind, Kaithal, Karnal, Kurukshetra, Panipat, Pehowa, Rewari, Rohtak, Sirsa, Sonipat, Bilaspur, Chamba, Dalhousie, Dharmshala, Hamirpur, Kangra, Kullu, Mandi, Nahan, Shimla, Una, Anantnag, Baramula, Doda, Gulmarg, Jammu, Kathua, Punch, Rajouri, Srinagar, Udhampur, Bokaro, Chaibasa, Deoghar, Dhanbad, Dumka, Giridih, Hazaribag, Jamshedpur, Jharia, Rajmahal, Ranchi, Saraikela, Badami, Ballari, Bengaluru, Belagavi, Bhadravati, Bidar, Chikkamagaluru, Chitradurga, Davangere, Halebid, Hassan, Hubballi-Dharwad, Kalaburagi, Kolar, Madikeri, Mandya, Mangaluru, Mysuru, Raichur, Shivamogga, Shravanabelagola, Shrirangapattana, Tumakuru, Vijayapura, Alappuzha, Vatakara, Idukki, Kannur, Kochi, Kollam, Kottayam, Kozhikode, Mattancheri, Palakkad, Thalassery, Thiruvananthapuram, Thrissur, Kargil, Leh, Balaghat, Barwani, Betul, Bharhut, Bhind, Bhojpur, Bhopal, Burhanpur, Chhatarpur, Chhindwara, Damoh, Datia, Dewas, Dhar, Dr. Ambedkar Nagar (Mhow), Guna, Gwalior, Hoshangabad, Indore, Itarsi, Jabalpur, Jhabua, Khajuraho, Khandwa, Khargone, Maheshwar, Mandla, Mandsaur, Morena, Murwara, Narsimhapur, Narsinghgarh, Narwar, Neemuch, Nowgong, Orchha, Panna, Raisen, Rajgarh, Ratlam, Rewa, Sagar, Sarangpur, Satna, Sehore, Seoni, Shahdol, Shajapur, Sheopur, Shivpuri, Ujjain, Vidisha, Ahmadnagar, Akola, Amravati, Aurangabad, Bhandara, Bhusawal, Bid, Buldhana, Chandrapur, Daulatabad, Dhule, Jalgaon, Kalyan, Karli, Kolhapur, Mahabaleshwar, Malegaon, Matheran, Mumbai, Nagpur, Nanded, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Ratnagiri, Sangli, Satara, Sevagram, Solapur, Thane, Ulhasnagar,n Vasai-Virar, Wardha, Yavatmal, Imphal, Cherrapunji, Shillong, Aizawl, Lunglei, Kohima, Mon, Phek, Wokha, Zunheboto, Balangir, Baleshwar, Baripada, Bhubaneshwar, Brahmapur, Cuttack, Dhenkanal, Kendujhar, Konark, Koraput, Paradip, Phulabani, Puri, Sambalpur, Udayagiri, Karaikal, Mahe, Puducherry, Yanam, Amritsar, Batala, Chandigarh, Faridkot, Firozpur, Gurdaspur, Hoshiarpur, Jalandhar, Kapurthala, Ludhiana, Nabha, Patiala, Rupnagar, Sangrur, Abu, Ajmer, Alwar, Amer, Barmer, Beawar, Bharatpur, Bhilwara, Bikaner, Bundi, Chittaurgarh, Churu, Dhaulpur, Dungarpur, Ganganagar, Hanumangarh, Jaipur, Jaisalmer, Jalor, Jhalawar, Jhunjhunu, Jodhpur, Kishangarh, Kota, Merta, Nagaur, Nathdwara, Pali, Phalodi, Pushkar, Sawai Madhopur, Shahpura, Sikar, Sirohi, Tonk, Udaipur, Gangtok, Gyalshing, Lachung, Mangan, Arcot, Chengalpattu, Chennai, Chidambaram, Coimbatore, Cuddalore, Dharmapuri, Dindigul, Erode, Kanchipuram, Kanniyakumari, Kodaikanal, Kumbakonam, Madurai, Mamallapuram, Nagappattinam, Nagercoil, Palayamkottai, Pudukkottai, Rajapalayam, Ramanathapuram, Salem, Thanjavur, Tiruchchirappalli, Tirunelveli, Tiruppur, Thoothukudi, Udhagamandalam, Vellore, Hyderabad, Karimnagar, Khammam, Mahbubnagar, Nizamabad, Sangareddi, Warangal, Agartala, Agra, Aligarh, Amroha, Ayodhya, Azamgarh, Bahraich, Ballia, Banda, Bara Banki, Bareilly, Basti, Bijnor, Bithur, Budaun, Bulandshahr, Deoria, Etah, Etawah, Faizabad, Farrukhabad-cum-Fatehgarh, Fatehpur, Fatehpur Sikri, Ghaziabad, Ghazipur, Gonda, Gorakhpur, Hamirpur, Hardoi, Hathras, Jalaun, Jaunpur, Jhansi, Kannauj, Kanpur, Lakhimpur, Lalitpur, Lucknow, Mainpuri, Mathura, Meerut, Mirzapur-Vindhyachal, Moradabad, Muzaffarnagar, Partapgarh, Pilibhit, Prayagraj, Rae Bareli, Rampur, Saharanpur, Sambhal, Shahjahanpur, Sitapur, Sultanpur, Tehri, Varanasi, Almora, Dehra Dun, Haridwar, Mussoorie, Nainital, Pithoragarh, Alipore, Alipur Duar, Asansol, Baharampur, Bally, Balurghat, Bankura, Baranagar, Barasat, Barrackpore, Basirhat, Bhatpara, Bishnupur, Budge Budge, Burdwan, Chandernagore, Darjeeling, Diamond Harbour, Dum Dum, Durgapur, Halisahar, Haora, Hugli, Ingraj Bazar, Jalpaiguri, Kalimpong, Kamarhati, Kanchrapara, Kharagpur, Cooch Behar, Kolkata, Krishnanagar, Malda, Midnapore, Murshidabad, Nabadwip, Palashi, Panihati, Purulia, Raiganj, Santipur, Shantiniketan, Shrirampur, Siliguri, Siuri, Tamluk, Titagarh
Specification List Of Nickel Alloy Fasteners
Nickel Alloy Fasteners Standard | IS, ANSI, ASTM DIN, ISO, JIS, GB, ASME, BS, UNI, and all International Standards |
Threads: | BSF, UNF METRIC, UNC, BSW, or as required |
Nickel Alloy Fasteners Standard | ANSI – American National Standards Institute
DIN:DIN 933, DIN 931, DIN 970, DIN 934 UTS – Unified Thread Standard: UNF, NPT, NPTF, UNS, UNC, UNEF ISO – International Organization for Standardization ISO 4033, ISO 4032, JIS standards |
Fasteners/ Bolts Size | M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160 |
Length | 3 mm to 200 mm |
Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
Nickel Alloy Fasteners Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
Finishing | Zinc white, (yellow, black, blue), black oxide, Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated, Stainless steel: Passivated Self-Colour, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, Stainless Steel, some special ones like DACROMET, and Mechanically Applied coating |
raw materials of Source | JSPL, Usha Martin, Tata Steel, Mukund Steel, RINL, Dhamm Steel etc. |
Form | Square, Hex, Threading as per Gauge, Round Etc. |
Nickel Alloy Fasteners Process of Production | M2-M24: Cold Forging, hot forging M24-M100, machining, and CNC for Customized connecting element |
Surface Coating |
|
Nickel Alloy Fasteners Packing | IN BULK: pallet, canton, carton / Small Box/pallet or customer request |
Nickel Alloy Bolt Chemical Composition
Nickel Alloy 200 Fasteners | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
Mechanical Properties Of B160 Nickel Alloy fasteners
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500, MPa – 148 | Psi – 67000, MPa – 462 | 45 % |
Physical Properties Of UNS N02200 Fasteners
Density | 8.902gm/cc |
Melting Point | 1453 oC |
Boiling Point | 2732 oC |
Thermal Conductivity | 0.909 W/cm/K @ 298.2K |
Electrical Resistivity | 6.84 microhm-cm @ 20 |
Electronegativity | 1.8 Paulings |
Specific Heat | 0.106 Cal/g/ K @ 25 |
Heat of Vaporization | 91.0 K-Cal/gm atom at 2732 oC |
Heat of Fusion | 4.20 Cal/gm mole |
Equivalent Grade Of Nickel Aloy Fasteners
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
Nickel Alloy 200 Fasteners | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
Common Uses For Nickel Alloy Fasteners
- Equipment and components exposed to chemicals, acids, and other corrosive materials
- Marine and saltwater
- Exhaust systems, engine components, and other high-heat equipment.
- Food processing or food serving equipment
- Pump and valve components
Nickel Alloy Fasteners Price In India
Nickel Alloy Fasteners Price List | Price Per Pcs. |
Nickel Alloy Screws price | USD $3.40 |
Nickel Alloy Hex head bolt price | USD $6.25 |
Nickel Alloy Dowel Pins price | USD $1.40 |
Nickel Alloy Allen bolt price | USD $5.00 |
Nickel Alloy Machine bolt price | USD $5.50 |
Nickel Alloy Washer price | USD $1.40 |
Nickel Alloy Socket Head Cap Screw price | USD $3.40 |
Nickel Alloy Nuts price | USD $1.40 |
Nickel Stud Bolt Torque Chart
Bolt Diameter | Nut Size | Moly Lube | Nickel Lube | Copper Lube | Machine Oil | Dry |
|
| u=0.085 | u=0.110 | u=0.100 | u=0.160 | u=0.400 |
3/4" | 1-1/4" | 145 | 239 | 219 | 313 | 782 |
7/8" | 1-7/16" | 231 | 380 | 350 | 501 | 1250 |
1" | 1-5/8" | 343 | 567 | 522 | 746 | 1864 |
1-1/8" | 1-13/16" | 491 | 819 | 753 | 1080 | 2721 |
1-1/4" | 2" | 676 | 1135 | 1044 | 1505 | 3808 |
1-3/8" | 2-3/16" | 901 | 1526 | 1400 | 2025 | 5149 |
1-1/2" | 2-3/8" | 1171 | 1995 | 1829 | 2654 | 6491 |
1-5/8" | 2-9/16" | 1499 | 2567 | 2354 | 3423 | 8764 |
1-3/4" | 2-3/4" | 1873 | 3221 | 2952 | 4300 | 11043 |
1-7/8" | 2-15/16" | 2304 | 3977 | 3642 | 5317 | 13685 |
2" | 3-1/8" | 2795 | 4844 | 4433 | 6482 | 16718 |
2-1/8" | N/A | 3353 | 5826 | 5332 | 7805 | 20171 |
2-1/4" | 3-1/2" | 3980 | 6934 | 6343 | 9297 | 24067 |
2-3/8" | N/A | 4680 | 8173 | 7474 | 10367 | 28434 |
2-1/2" | 3-7/8" | 5457 | 9552 | 8733 | 12862 | 33275 |
2-3/4" | 4-1/4" | 6567 | 11541 | 10546 | 15519 | 40384 |
3" | 4-5/8" | 9781 | 15024 | 13724 | 20225 | 52738 |
3-1/4" | 5" | 10829 | 19146 | 17483 | 25799 | 67380 |
3-1/2" | 5-3/8" | 13518 | 23958 | 21870 | 32310 | 84511 |
3-3/4" | 5-3/4" | 16619 | 29517 | 26937 | 39834 | 10432 |
4" | 6-1/8" | 19083 | 34013 | 32730 | 45956 | 12700 |
4-1/4" | 6-1/2" | 20161 | 35873 | 31026 | 48444 | 12060 |
4-1/2" | 6-7/8" | 22643 | 40419 | 36864 | 54640 | 14351 |
Nickel Alloy Bolt As Per DIN /BS Grades
Hexagon Bolts / Set Screws | Stud Bolts | Hexagon Nuts | Socket Cap screws |
DIN 931 | BS4882 | DIN 934 | DIN 912 |
DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
BS 1768 |
| BS 1769 | DIN 7984 |
UNI 5731 |
| BS 1083 | ANSI B18.3 |
UNI 5739 |
| BS 3692 | ISO 4762 |
ISO 4014 |
| ISO 4032 | UNI 5931 |
ISO 4017 |
| ISO 4033 | BS 2470 |
BS 1769 |
| ANSI B18.2.2 | BS 4168 |
BS 3692 |
|
|
|
ANSI B18.2.1 |
|
|
|
Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
DIN 913 | DIN 963 | DIN 938 | DIN 125 |
DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
DIN 916 | BS 1981 | BS 4439 | BS 3410 |
DIN 551 | BS 483 | BS 2693 |
|
DIN 553 | BS 2470 |
| Spring Washers |
DIN 438 |
|
| DIN 127 |
BS 4168 |
|
| BS 4464 |
|
|
| BS 1802 |
Nickel Fasteners Surface Treatments
- Phosphate Coated Fasteners
- Electroless Nickel Plated Fasteners
- Teflon Coated Fasteners
- Dacromet Fasteners
- Silver Coated Fasteners
- Ceramic Filled PTFE Coated Fasteners
- Electro Cadmium Plated Fasteners
- Zinc Nickel Coated Fasteners
- Cadmium Coated Fasteners
- Geomet Fasteners
- Hot Dipped Galvanized Fasteners
- Electro Zinc plated Fasteners
- Zinc Coated Fasteners
- Xylon Coated Fasteners
- Aluminum Coated Fasteners
- Zinc/Nickel by Electrodeposition Fasteners
Sizes Of Nickel Alloy Fasteners
SIZES | ||
Nickel Alloy Fasteners Sizes | 3/8″-16 x 1-1/4″ | 3/8″-16 x 1″ Grade 18-8 |
1/2″-13 x 2″ | 1/4″-20 x 1″ Grade 18-8 | |
1/4″-20 x 1″ | 3/8″-16 x 1-1/4″ | |
1/4″-20 x 3/4″ Grade 18-8 | 5/8″-11 x 2″ | |
1/2″-13 x 2″ | 3/8″-16 x 1-1/2″ | |
3/8″-16 x 1-1/2″ | 3/8″-16 x 2″ | |
1/2″-13 x 1-1/2″ | 3/8″-16 x 1″ | |
1/2″-13 x 1-1/2″ | 5/8″-11 x 2-1/2″ | |
5/8″-11 x 2″ | 5/16″-18 x 1″ | |
3/8″-16 x 1″ | 1/4″-20 x 3/4″ |
ANSI And/Or ASME Standards Of B160 Nickel Alloy Nuts
ASME B18.1.1 | Small Solid Rivets | ASME B18.8.1 | Clevis Pins and Cotter Pins |
ASME B18.1.2 | Large Rivets | ASME B18.8.2 | Taper Pins, Dowel Pins, Straight Pins, Grooved Pins and Spring Pins |
ASME B18.2.1 | Square and Hex Bolts and Screws | ASME B18.9 | Plow Bolts |
ASME B18.2.2 | Square and Hex Nuts | ASME B18.10 | Track Bolts and Nuts |
ASME B18.2.6 | Fasteners for use in Structural Applications | ASME B18.11 | Miniature Screws |
ASME B18.3 | Socket Cap, Shoulder and Set Screws | ASME B18.13 | Screws and Washer Assemblies (Sems) |
ASME B18.5 | Round Head Bolts | ASME B18.15 | Forged Eyebolts |
ASME B18.6.2 | Slotted Head Cap Screws, Square Head Set Screws, and Slotted Headless Set Screws | ASME B18.17 | Wing Nuts, Thumb Screws and Wing Screws |
ASME B18.6.3 | Machine Screws and Machine Screws Nuts | ASME B18.21.1 | Lock Washers |
ASME B18.6.4 | Thread Forming and Thread Cutting Tapping Screws and Metallic Drive Screws | ASME B18.22.1 | Plain Washers |
ASME B18.7 | General Purpose Semi- Tubular Rivets, Full Tubular Rivets, Split Rivets and Rivet Caps | ASME B18.23.1 | Beveled Washers |
Available Nickel Alloy Fasteners
- Inconel Fasteners
- Inconel Stud
- Inconel Screws
- Inconel 600 Fasteners
- Inconel 601 Fasteners
- Inconel 625 Fasteners
- Inconel 718 Fasteners
- Incoloy 800 Fasteners
- Incoloy 825 Fasteners
- Monel Fasteners
- Monel 400 Fasteners
- Hastelloy Fasteners
- Hastelloy C276 Fasteners
- Hastelloy Screws
Application Industries Of Nickel Alloy Fasteners
- Power Plant Industry
- Oil and Gas Industry
- Petrochemical Industry
- Chemical Industry
- Refining Industry
- Pharmaceuticals Industry
- Energy Industry
- Aerospace Industry
- Pulp & Paper Industry
- Food Processing Industry
