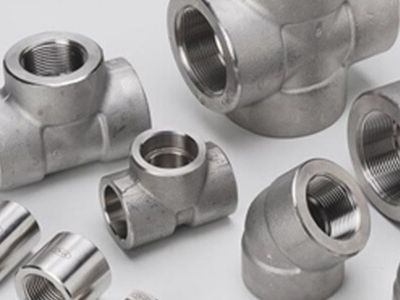

SS 904L Forged Fittings
904L SS High Pressure Forged Fittings, 1.4539 Forged Fittings, Stainless Steel 904L Socket weld Fittings, SS 904L Socket weld Fittings, UNS N08904 Forged Fittings, Stainless Steel 904L Forged Fittings, 904L Stainless Steel Forged Fittings, SS 904L Threaded Fittings, UNS N08904 Forged Fittings, Stainless Steel 904L Threaded Fittings Manufacturer in Mumbai, India.
Ready Stock of X1NiCrMoCu25-20-5 Stainless Steel Forged Elbow, Competitive Price of Stainless Steel 904L Forged Tees, 904L Stainless Steel Forged Cross Trader, Largest Stockholder of Stainless Steel 904L Forged Fittings in India, SS 904L Coupling, ASTM A182 F904L Socket weld Fittings Manufacturers in Mumbai, India.
DETAILED INFORMATION
A leading supplier of industrial steel and SS 904L Forged Fittings, MehtaMetals.com manufactures and imports. We design custom forms for entire types of forged fittings and industrial steel. All of our products are tested, examined, and packed before they are delivered to our clients. All of our fittings are made with high-quality raw materials for better performance in harsh environments.
As a result of their high strength and hardness, SS 904L Forged Fittings are manufactured with various types of specifications. Ends, surfaces, finishes, pressures, lengths, shapes, sizes, thicknesses, widths, types, forms, tolerances, conditions, and applications are likely to be included in these specifications. In addition to being strong, these fittings are even designed with several properties that make them suitable for chemical processing. Physical and mechanical properties include melting point, thermal conductivity, and electrical conductivity, as well as proof stress, modulus of expansion, tensile strength, yield strength, ultimate tensile strength, electrical resistivity, elongation, and density.
Several chemicals are used in these fittings to resist corrosion, including carbon, manganese, sulfur, chromium, molybdenum, copper, nickel, sulfur, and phosphorous. As well as threaded elbows, threaded tees, threaded crosses, threaded caps, threaded couplings, threaded bushings, threaded unions, hexagonal plugs, threaded hex plugs, threaded plugs, and threaded pipe nipples, these fittings come in a variety of types.
There are many general applications and industries where SS 904L Forged Fittings can be used, including water supply systems, offshore oil drilling, gas processing, food processing, plumbing, specialty chemical industries, heat exchangers, condensers, paper, fertilizer, pulp, petrochemical, chemical equipment, pharmaceutical, seawater, pharmaceutical, and cement industries.
SS 904L Forged Fittings are made with excellent resistance properties from chemicals and seawater rust. They are also resistant to general corrosion, such as stress cracking corrosion, pitting corrosion, impact corrosion, and crevice corrosion. Further, these fittings have amazing properties such as formability, flexibility, ductility, durability, machinability, workability, and welding. High heat temperatures are generally not a problem for these fittings, and they can survive harsh conditions without deforming.
CITIES WE DELIVER
Adoni, Amaravati, Anantapur, Chandragiri, Chittoor, Dowlaiswaram ,Eluru, Guntur, Kadapa, Kakinada, Kurnool, Machilipatnam, Nagarjunakoṇḍa, Rajahmundry, Srikakulam, Tirupati, Vijayawada, Visakhapatnam, Vizianagaram, Yemmiganur, Itanagar, Dhuburi, Dibrugarh, Dispur, Guwahati, Jorhat, Nagaon, Sivasagar, Silchar, Tezpur, Tinsukia, Ara, Barauni, Begusarai, Bettiah, Bhagalpur, Bihar, Sharif, Bodh Gaya, Buxar, Chapra, Darbhanga, Dehri, Dinapur Nizamat, Gaya, Hajipur, Jamalpur, Katihar, Madhubani, Motihari, Munger, Muzaffarpur, Patna, Purnia, Pusa, Saharsa, Samastipur, Sasaram, Sitamarhi, Siwan, Chandigarh, Ambikapur, Bhilai, Bilaspur, Dhamtari, Durg, Jagdalpur, Raipur, Rajnandgaon, Daman, Diu, Silvassa, Delhi, New Delhi, Madgaon, Panaji, Ahmadabad, Amreli, Bharuch, Bhavnagar, Bhuj, Dwarka, Gandhinagar, Godhra, Jamnagar, Junagadh, Kandla, Khambhat, Kheda, Mahesana, Morbi, Nadiad, Navsari, Okha, Palanpur, Patan, Porbandar, Rajkot, Surat, Surendranagar, Valsad, Veraval, Ambala, Bhiwani, Chandigarh, Faridabad, Firozpur Jhirka, Gurugram, Hansi, Hisar, Jind, Kaithal, Karnal, Kurukshetra, Panipat, Pehowa, Rewari, Rohtak, Sirsa, Sonipat, Bilaspur, Chamba, Dalhousie, Dharmshala, Hamirpur, Kangra, Kullu, Mandi, Nahan, Shimla, Una, Anantnag, Baramula, Doda, Gulmarg, Jammu, Kathua, Punch, Rajouri, Srinagar, Udhampur, Bokaro, Chaibasa, Deoghar, Dhanbad, Dumka, Giridih, Hazaribag, Jamshedpur, Jharia, Rajmahal, Ranchi, Saraikela, Badami, Ballari, Bengaluru, Belagavi, Bhadravati, Bidar, Chikkamagaluru, Chitradurga, Davangere, Halebid, Hassan, Hubballi-Dharwad, Kalaburagi, Kolar, Madikeri, Mandya, Mangaluru, Mysuru, Raichur, Shivamogga, Shravanabelagola, Shrirangapattana, Tumakuru, Vijayapura, Alappuzha, Vatakara, Idukki, Kannur, Kochi, Kollam, Kottayam, Kozhikode, Mattancheri, Palakkad, Thalassery, Thiruvananthapuram, Thrissur, Kargil, Leh, Balaghat, Barwani, Betul, Bharhut, Bhind, Bhojpur, Bhopal, Burhanpur, Chhatarpur, Chhindwara, Damoh, Datia, Dewas, Dhar, Dr. Ambedkar Nagar (Mhow), Guna, Gwalior, Hoshangabad, Indore, Itarsi, Jabalpur, Jhabua, Khajuraho, Khandwa, Khargone, Maheshwar, Mandla, Mandsaur, Morena, Murwara, Narsimhapur, Narsinghgarh, Narwar, Neemuch, Nowgong, Orchha, Panna, Raisen, Rajgarh, Ratlam, Rewa, Sagar, Sarangpur, Satna, Sehore, Seoni, Shahdol, Shajapur, Sheopur, Shivpuri, Ujjain, Vidisha, Ahmadnagar, Akola, Amravati, Aurangabad, Bhandara, Bhusawal, Bid, Buldhana, Chandrapur, Daulatabad, Dhule, Jalgaon, Kalyan, Karli, Kolhapur, Mahabaleshwar, Malegaon, Matheran, Mumbai, Nagpur, Nanded, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Ratnagiri, Sangli, Satara, Sevagram, Solapur, Thane, Ulhasnagar,n Vasai-Virar, Wardha, Yavatmal, Imphal, Cherrapunji, Shillong, Aizawl, Lunglei, Kohima, Mon, Phek, Wokha, Zunheboto, Balangir, Baleshwar, Baripada, Bhubaneshwar, Brahmapur, Cuttack, Dhenkanal, Kendujhar, Konark, Koraput, Paradip, Phulabani, Puri, Sambalpur, Udayagiri, Karaikal, Mahe, Puducherry, Yanam, Amritsar, Batala, Chandigarh, Faridkot, Firozpur, Gurdaspur, Hoshiarpur, Jalandhar, Kapurthala, Ludhiana, Nabha, Patiala, Rupnagar, Sangrur, Abu, Ajmer, Alwar, Amer, Barmer, Beawar, Bharatpur, Bhilwara, Bikaner, Bundi, Chittaurgarh, Churu, Dhaulpur, Dungarpur, Ganganagar, Hanumangarh, Jaipur, Jaisalmer, Jalor, Jhalawar, Jhunjhunu, Jodhpur, Kishangarh, Kota, Merta, Nagaur, Nathdwara, Pali, Phalodi, Pushkar, Sawai Madhopur, Shahpura, Sikar, Sirohi, Tonk, Udaipur, Gangtok, Gyalshing, Lachung, Mangan, Arcot, Chengalpattu, Chennai, Chidambaram, Coimbatore, Cuddalore, Dharmapuri, Dindigul, Erode, Kanchipuram, Kanniyakumari, Kodaikanal, Kumbakonam, Madurai, Mamallapuram, Nagappattinam, Nagercoil, Palayamkottai, Pudukkottai, Rajapalayam, Ramanathapuram, Salem, Thanjavur, Tiruchchirappalli, Tirunelveli, Tiruppur, Thoothukudi, Udhagamandalam, Vellore, Hyderabad, Karimnagar, Khammam, Mahbubnagar, Nizamabad, Sangareddi, Warangal, Agartala, Agra, Aligarh, Amroha, Ayodhya, Azamgarh, Bahraich, Ballia, Banda, Bara Banki, Bareilly, Basti, Bijnor, Bithur, Budaun, Bulandshahr, Deoria, Etah, Etawah, Faizabad, Farrukhabad-cum-Fatehgarh, Fatehpur, Fatehpur Sikri, Ghaziabad, Ghazipur, Gonda, Gorakhpur, Hamirpur, Hardoi, Hathras, Jalaun, Jaunpur, Jhansi, Kannauj, Kanpur, Lakhimpur, Lalitpur, Lucknow, Mainpuri, Mathura, Meerut, Mirzapur-Vindhyachal, Moradabad, Muzaffarnagar, Partapgarh, Pilibhit, Prayagraj, Rae Bareli, Rampur, Saharanpur, Sambhal, Shahjahanpur, Sitapur, Sultanpur, Tehri, Varanasi, Almora, Dehra Dun, Haridwar, Mussoorie, Nainital, Pithoragarh, Alipore, Alipur Duar, Asansol, Baharampur, Bally, Balurghat, Bankura, Baranagar, Barasat, Barrackpore, Basirhat, Bhatpara, Bishnupur, Budge Budge, Burdwan, Chandernagore, Darjeeling, Diamond Harbour, Dum Dum, Durgapur, Halisahar, Haora, Hugli, Ingraj Bazar, Jalpaiguri, Kalimpong, Kamarhati, Kanchrapara, Kharagpur, Cooch Behar, Kolkata, Krishnanagar, Malda, Midnapore, Murshidabad, Nabadwip, Palashi, Panihati, Purulia, Raiganj, Santipur, Shantiniketan, Shrirampur, Siliguri, Siuri, Tamluk, Titagarh
Specification Of ASTM A182 Stainless Steel 904L Forged Fittings
Specifications | ASTM A182 & ASME SA182 |
Stainless Steel Forged Pipe Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
ASTM A182 F904L Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Werkstoff No 1.4539 SS 904L Thread Fittings | NPT, BSPT, BSPP |
ASME SA182M F904L FittingsType | DN15-DN1200 |
End | Threaded, Welding, JIC |
Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Connection | Welding |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
UNS N08904 Forged Steel Fitting Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third-Party Inspection Report, etc |
Manufacturers of A182 F904L Forged Fittings |
|
Origin | West Europe / Japan / India / USA / Korean |
Industrial Applications for ASME SA182M SS 904L Pipe Fittings |
|
Providing Material Test Certificates (MTC) in accordance with EN 10204 3.1 and EN 10204 3.2 and certifying NACE MR0103 and NACE MR0175 |
Stainless Steel 904L Forged Fittings Chemical Composition
Grade | SS 904L |
C | 0.02 max |
Mn | 2.00 max |
Si | 1.0 max |
P | 0.045 max |
S | 0.035 max |
Cr | 19.0 – 23.0 |
Ni | 23.0 – 28.0 |
Mo | 4.0 – 5.0 |
Cu | 1.0 – 2.0 |
Mechanical Properties of ASTM A182 904L Stainless Steel Forged Fittings
Grade | SS 904L |
Density | 8.05 g/cm3 |
Melting Point | 1350°C (2460°F) |
Tensile Strength | Psi – 71000 , MPa – 490 |
Yield Strength (0.2%Offset) | Psi – 32000 , MPa – 220 |
Elongation | 35 % |
Stainless Steel 904L Forged Fittings Physical Properties
Grade | Density (kg/m3) | Elastic Modulus (GPA) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | At 20°C | At 500°C | |||||
904L | 7900 | 19 | 15 | - | - | 11.5 | - | 500 | 952 |
904L Stainless Steel Forged Fittings – Equivalent Grades
Grade | SS 904L |
UNS No | N08904 |
WERKSTOFF NR. | 1.4539 |
JIS | SUS 890L |
BS | 904S13 |
KS | STS 317J5L |
AFNOR | Z7 NCDU 25-20 |
EN | X1NiCrMoCu25-20-5 |
Types Of Stainless Steel 904l Forged Socket Weld Fittings
- Socket Weld Elbow 904L Stainless Steel
- Socket Weld Fittings UNS N08904
- Fittings for Forged Socket Weld NR. 1.4539 by Werkstoff
- Socket weld equal tee made from SS 904L
- Uneven Tee in 904L SS Forged Socket Weld
- Equal Cross Forged Socket Weld to ASTM A182 SS 904L
- SS 904L Forged Socket Weld Half Couplings
- Couplings with forged socket welds UNS N08904
- Socket Weld Reducing Couplings in SS 904L
- Forged socket weld lateral tee in stainless steel 904L
- An elbow made of stainless steel 904L socket welded at 90 degrees
- Uneven cross-section forged socket weld of SS 904L according to ASTM A182
- Forged 904L stainless steel socket weld cap
- Forged 904L SS Socket Weld Reducing Insert
- Forged SS 904L socket weld bushing ANSI B16.11
- Pipe Nipples in 904L SS Forged Socket Weld
- Hex Nipples of SS 904L Forged Socket Weld
- Forged socket weld plug made of stainless steel 904L
- Forged socket weld plug in SS 904L by MSS SP-79
- Unions for socket welds according to UNS N08904
- 45 degree socket weld elbow made from stainless steel 904L
Buttweld Stainless Steel 904l Forged Fittings Seamless/Welded 100% Radiography Tested
Products | |
904l Stainless Steel Elbows – Long Radius | 904l Stainless Steel Stub Ends |
904l Stainless Steel Elbows – Short Radius | 904l Stainless Steel Crosses |
904l Stainless Steel Reducing Elbows | 904l Stainless Steel Reducing Crosses |
904l Stainless Steel 45° Elbows | 904l Stainless Steel 180° LR Return Bends |
904l Stainless Steel Tees | 904l Stainless Steel 180° SR Return Bends |
904l Stainless Steel Tees | 904l Stainless Steel Pipe Bends / Piggable Bends |
904l Stainless Steel Reducers | 904l Stainless Steel Couplings |
904l Stainless Steel Concentric Reducers | 904l Stainless Steel Pipe Nipples |
904l Stainless Steel Eccentric Reducers | 904l Stainless Steel Forged/Plate Cut Rings |
904l Stainless Steel 3D Elbow | 904l Stainless Steel End Caps |
904l Stainless Steel 5D Elbow | 904l Stainless Steel Forged / Plate Circles |
High Pressure Forged Stainless Steel 904l Forged Fittings Threaded And Socket Weld Pipe Fittings
Products | |
904l Stainless Steel 90° Elbows | 904l Stainless Steel Couplings |
904l Stainless Steel 45° Elbows | 904l Stainless Steel Reducers |
904l Stainless Steel Street Elbows | 904l Stainless Steel Inserts |
904l Stainless Steel Tees | 904l Stainless Steel Caps |
904l Stainless Steel Crosses | 904l Stainless Steel Unions |
Stainless Steel 904L / High Pressure Forged Fittings have the following advantages :
- High strength and corrosion resistance
- Sulfide stress corrosion resistance is good
- Corrosion resistance against chloride pitting and crevice corrosion
- Enhanced resistance to corrosion cracking caused by chloride
- Conformable and easy to weld
We make a profitable business partner for our clients by offering the following services:
- Focus on the customer
- Products of superior quality
- Deliveries on time
- Size & Specifications can be customized
- Pricing that is competitive
Stainless Steel 904l Forged Fittings Value Added Services
- Commercial & Electrical (Polish)
- Treatment with heat
- The annealed state
- Preserving, polishing
- A rolling motion
- Taking a bend
- Making forgings
- Fabrication of minor items, etc.
ASTM A182 Stainless Steel 904L Forged Fittings HS code
- 730722 Stainless steel elbows, bends, and sleeves
- Forged elbows, bends, and sleeves of iron or steel, part 730792
Stainless Steel 904L Forged Fittings Standard
American Steel Forged Fittings Standard | |
Standard Code | Standard Name |
ANSI ASME SA-182 | Forged fittings |
ANSI ASME B16.11 | Socket-welding and Threaded forged fittings |
MSS SP-79 | Socket-welding reducing Inserts |
MSS SP-83 | Class 3000 steel socket-welding and threaded unions |
MSS SP-95 | Swaged nipples and round plugs |
MSS SP-97 | SW, TH, and BW ends for integrally reinforced forged branch outlet |
Quality Assurance & Test Certificate
We inspect all Stainless Steel 904l Pipe Fittings from the start to ensure good quality. Stainless Steel 904l Pipe Fittings are packed in wooden box wraps with foam paper as well as plastic, newspaper, and plastic bubble wrap according to the customer's requirements.
Our company also provides NACE 3.1 Certification for Stainless Steel 904l Pipe Fittings only. Manufacturer Test Certificate according to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
Markings On The Stainless Steel 904L Forged Fittings
Throughout the length of the forged fittings, the full identification should be continuous, including:
- Designation of ratings
- Designation of materials
- Grade of Specification
- A class designation can be 2000, 3000, 6000, or 9000
- Name or symbol of the manufacturer
Product documenting
The documentation of the product that we are offering to the buyers with the product is to ensure the buyers that no poor quality fittings are delivered. We offer commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, raw material test reports, material traceability reports, and NABL-approved lab test reports, among other documents.
Packaging
Stainless steel 904L Socketweld forged fittings are packaged according to well-stated product packaging standards. So the packaging is done by using plastic sheets and then placing into wooden cases and carton boxes. In this way, the product can be shipped to its buyer safely and damage-free.
Application Industries for Stainless Steel 904L Forged Fittings
- Industry of Petrochemicals
- Industry of Chemicals
- Industry of oil and gas
- The pulp and paper industry
- Industry of power plants
- Industry of food processing
- Industry of pharmaceuticals
- The energy industry
- Industry of aerospace
